Compact P2 GEO3

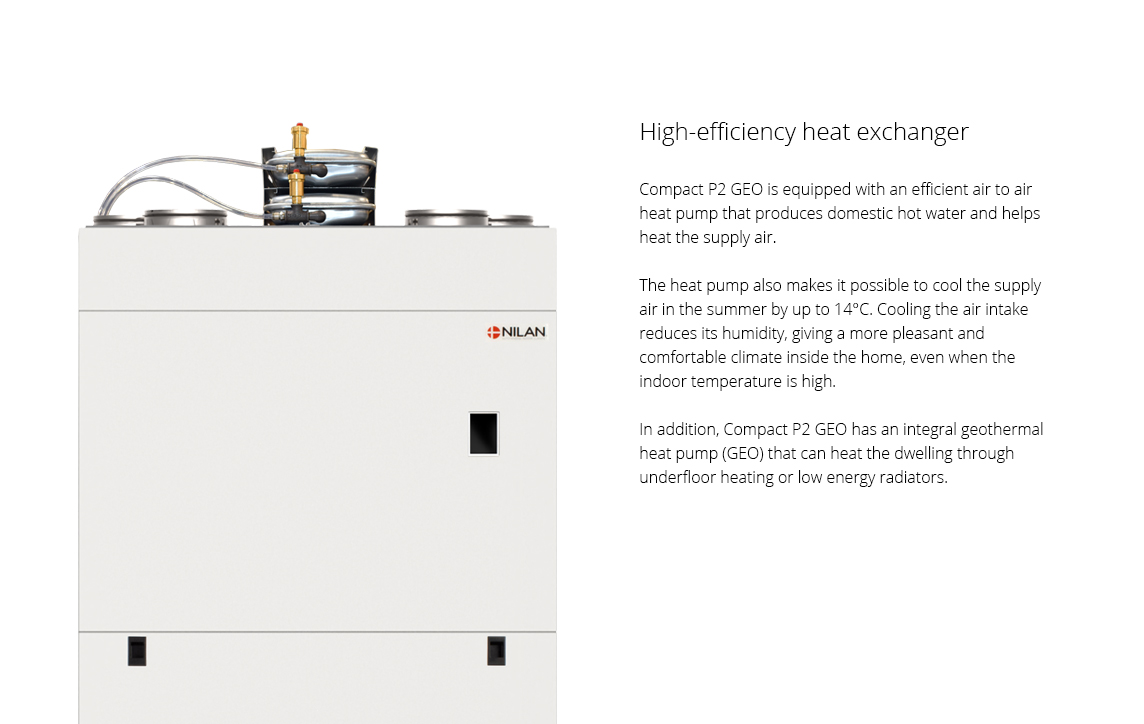

Compact P2 GEO3 is a multi-unit with three installations combined in one compact installation. It is intended for small dwellings with a ventilation requirement of up to 425 m3/h. The three installations comprise ventilation of the dwelling, production of domestic hot water, and heating of the dwelling via an efficient geothermal heat pump.

By integrating all three installations in just one installation, you save considerable space in the machine room. Another advantage is that the control systems work in unison, which enables energy efficiency and thereby an overall saving in energy consumption.


Airflow (see planning data for SEL/SFP values)

Min : 100 m3/h
Max : 425 m3/h

The “heart and lungs” of the house

Compact P2 is not a traditional ventilation unit. In contrast to other ventilation units, it recovers 100% of the heat from the extract air. The counterflow heat exchanger makes it possible to recover up to 95% of the energy in the extract air. This is then used to heat the outdoor air. The integral heat pump will utilise any remaining energy for producing domestic hot water.

The efficient GEO geothermal heat pump extracts energy from the ground. It is then used to heat the dwelling via an underfloor heating system or low energy radiators.

Passive heat recovery

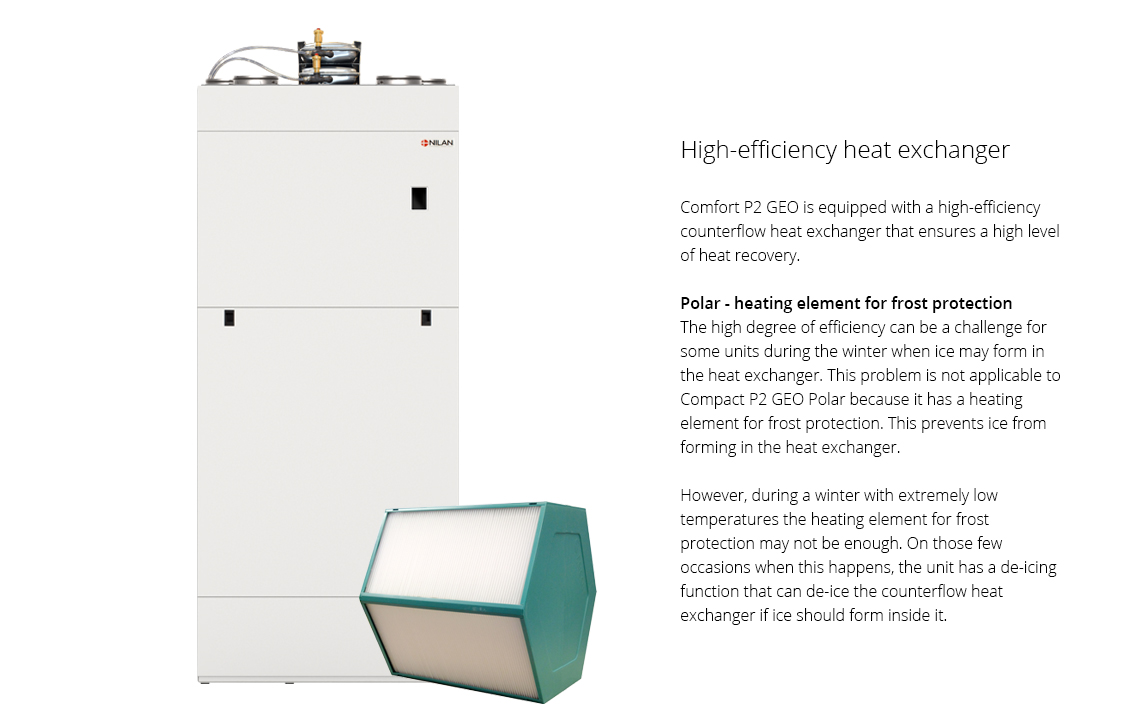

Passive heat recovery occurs via a counterflow heat exchanger with a temperature efficiency of up to 95%. The outdoor air is heated by the extract air. This ensures the least possible heat loss from the ventilation process.

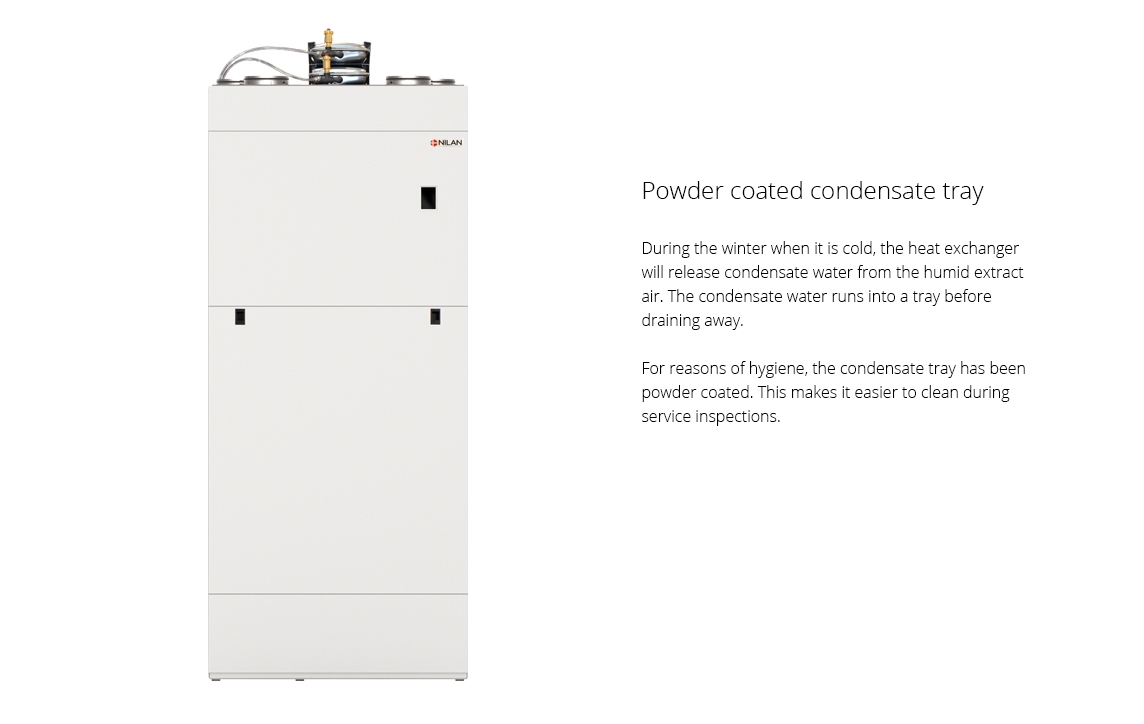

Due to the high level of heat recovery, ice may form in the exchanger during winter. The control system has an efficient de-icing function that will de-ice the exchanger if necessary. Alternatively, Compact P2 is available as a Polar model, which has an integral pre-heating element for frost protection. This ensures that ice cannot form in the exchanger, and it provides full heat recovery throughout the winter.

Passive and active heat recovery

When the integral heat pump in the ventilation part is not producing domestic hot water, it can heat the supply air even further and thereby help heat the dwelling.

This only happens when the indoor temperature or the supply air temperature falls below the value specified in the settings.

When the heat pump heats the supply air, the domestic hot water is also heated slightly at the same time. The temperature may therefore exceed the one that you have set as your desired hot water temperature.

Domestic hot water

The integral heat pump uses the energy in the extract air that has not been recovered by the counterflow heat exchanger. It uses this remaining energy to produce domestic hot water.

There is software-based scald protection of 60 °C, which means that the temperature in the hot water tank will not exceed this. If the requirement for hot water is considerable, we recommend that you install an actual anti-scald valve under the hot water tank so the temperature in the tank can increase to 90 °C. Compact P2 is available with a solar coil mounted in the hot water tank. If the requirement for domestic hot water is very high, the solar coil can act as supplementary heat source.

You can connect different energy sources to help heat the domestic hot water such as solar panels, district heating or a GEO geothermal heat pump.

Anti-legionella function
Compact P2 has an anti-legionella function that you can activate manually or set to activate automatically.

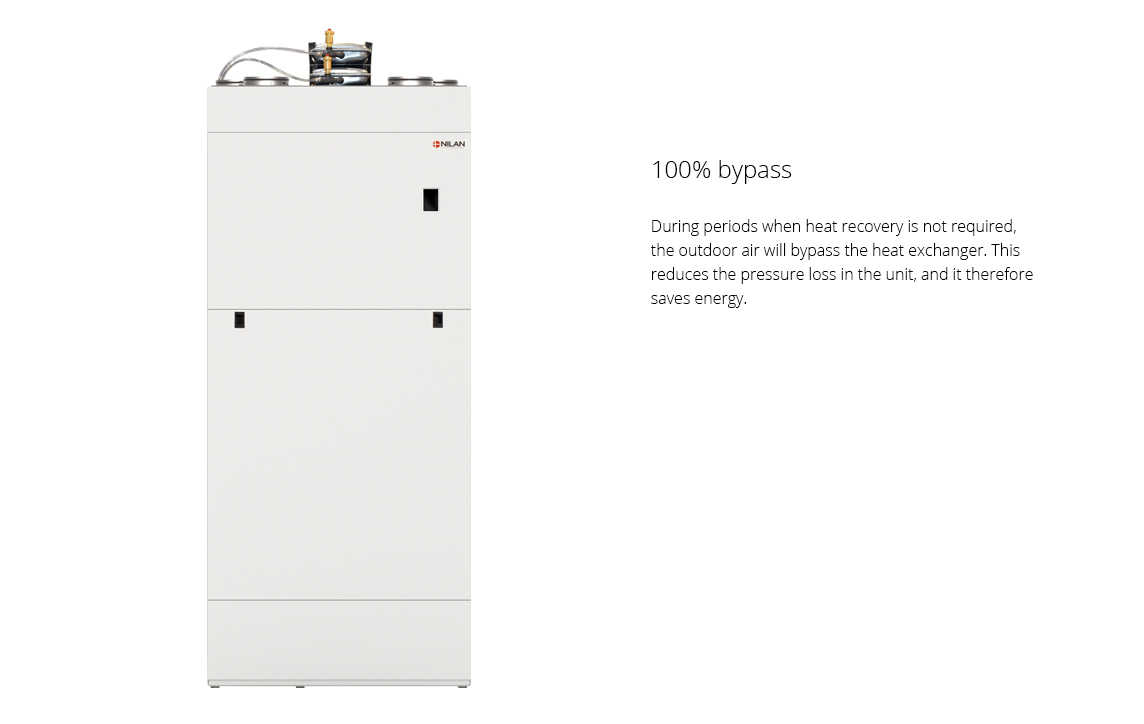

100% bypass function

When the outdoor temperature is above 14 °C, the unit will operate in summer mode. The unit will then cool the indoor air if the indoor temperature gets too high according to the values specified in the settings.

If the outdoor air is cooler than the indoor air, the bypass damper in the unit will open. The outdoor air will then bypass the heat exchanger, and the heat from the extract air will not get transferred to the outdoor air. This will help keep the temperature down inside the dwelling.

If the outdoor air is warmer than the indoor air, the bypass damper will close. The outdoor air will then flow through the heat exchanger, which will recover the coolness from the cooler indoor air and use it to cool the outdoor air.

NB: When the ventilation part of the unit operates in cooling mode, it will cause the GEO geothermal heat pump to stop so they do not counteract each other. If you still want the underfloor heating in the bathroom to be on, you can set the geothermal heat pump to work even when the ventilation system is in cooling mode. This will allow the geothermal heat pump to heat the dwelling when the thermoelectric actuators in the underfloor heating system call for heat even when the ventilation part is in cooling mode.

Active cooling

The heat pump in the ventilation part is reversible. This means that it can both heat and cool the supply air.

When the outdoor temperature is above 14 °C, the unit will operate in summer mode. The unit will then cool the indoor air if the indoor temperature gets too high according to the values specified in the settings.

When cooling, the unit will first attempt to do so by means of the bypass function. If this proves inadequate, it will begin to cool actively via the heat pump.

This requires that the active cooling function has been activated as the process uses electricity.  But it is not wasted because the heat that is extracted from the supply air is transferred to the hot water tank. If the requirement for cooling is high, it is recommended that you install a scald protection device below the hot water tank. You can then set the max. temperature in the hot water tank between 60 °C and 80 °C.

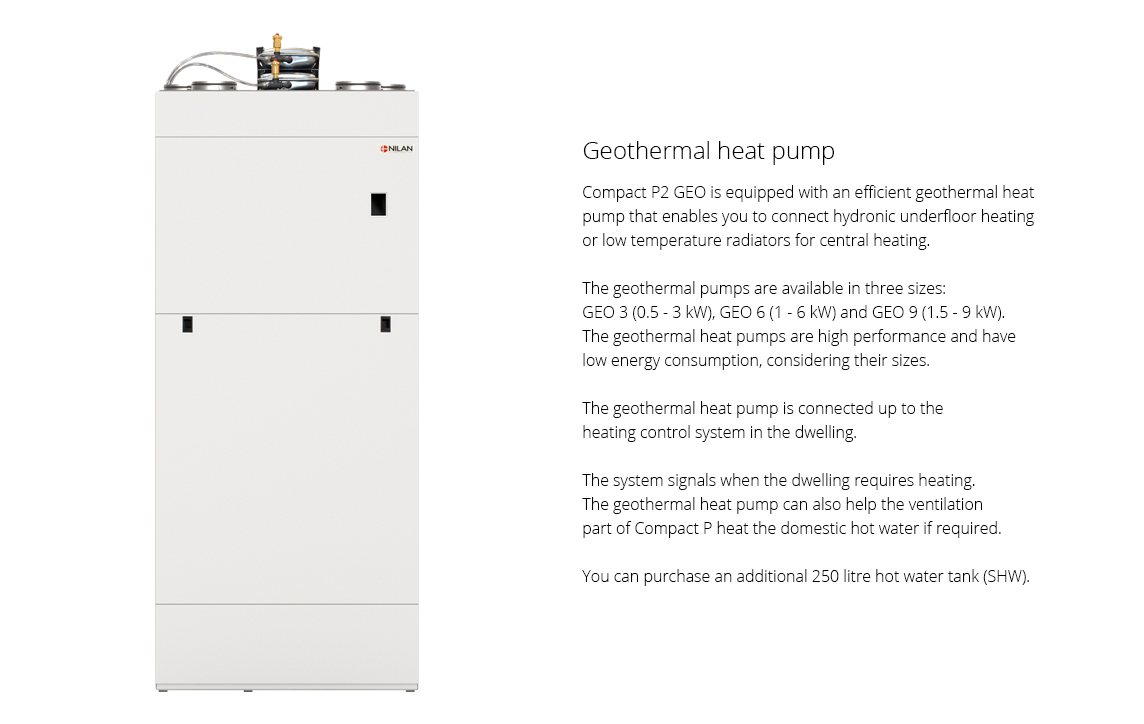

Geothermal heat pump

The efficient GEO geothermal heat pump extracts energy from the ground. It is then used to heat the dwelling via an underfloor heating system or low energy radiators.

The GEO geothermal heat pump is connected up to the heating control system in the dwelling. The control system signals when the dwelling requires heating. The signal typically comes from thermostats that are situated in the individual rooms. When they call for heat, the GEO geothermal heat pump will heat the dwelling.

NB: When the ventilation part of the unit operates in cooling mode, it will cause the GEO geothermal heat pump to stop so they do not counteract each other. If you still want the underfloor heating in the bathroom to be on, you can set the geothermal heat pump to work even when the ventilation system is in cooling mode. This will allow the geothermal heat pump to heat the dwelling when the thermoelectric actuators in the underfloor heating system call for heat even when the ventilation part is in cooling mode.

Domestic hot water
The GEO geothermal heat pump cannot heat the domestic hot water, but it can help the ventilation part of Compact P2 heat the domestic hot water if required.

If Compact P2 is equipped with a solar coil, you can connect the GEO geothermal heat pump to the hot water tank in Compact P2. The heat pump can then help heat the domestic hot water.

If you purchase an additional 250 litre hot water tank (SHW), the GEO geothermal heat pump can preheat the domestic hot water to a temperature of 45 °C before the water enters Compact P2 where it will get heated further.



Compact P2

Energy efficiency class for hot water production A
Consumer profile, water heater L (Large)
Hot water tank 180l
Dimensions (W x D x H) 900 x 610 x 2245 mm
Weight 260 kg (incl. GEO3 heat pump)
Plate type casing Aluzinc steel plate, white powder coating RAL9016
Heat exchanger type Polyethylenterephthalat counterflow heat exchanger

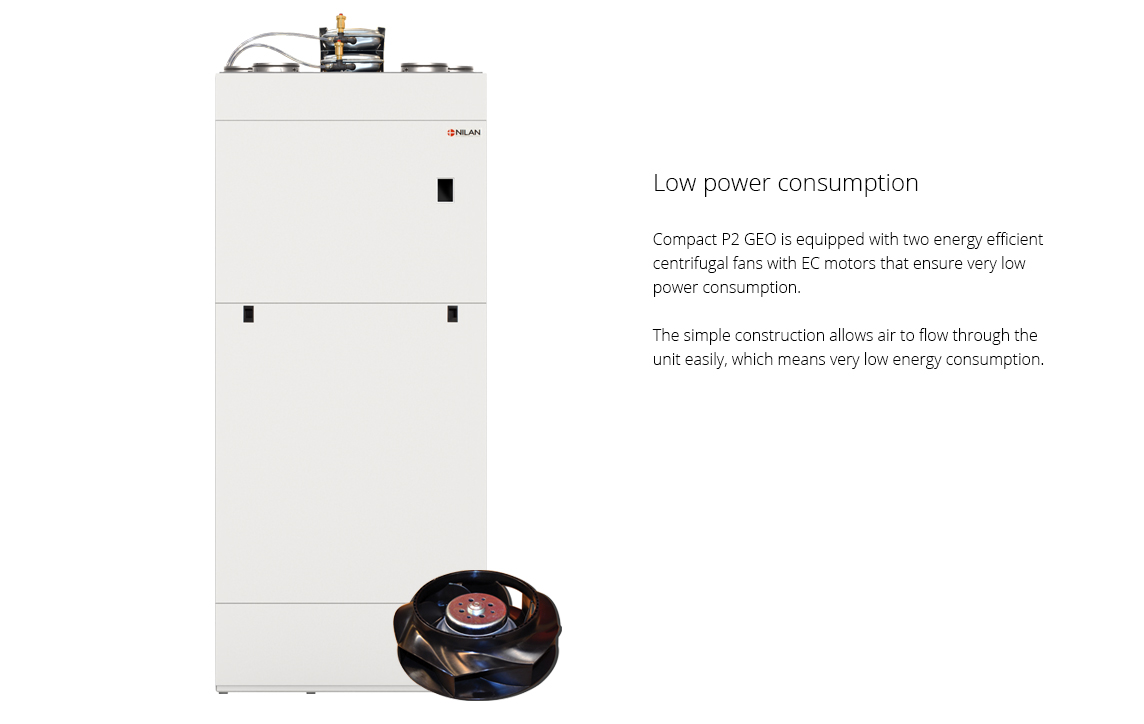

Fan type EC, constant rotation
Filter class Greencycle ISO 16890 Coarse 75% (G4)
Duct connections Ø160 mm
Refrigerant R134a
Refrigerant filling 2 kg
Condensate drain PVC Ø20 x 1,5 mm
Supply voltage 230V 50/60 Hz
Max. input/power 2,2 kW / 9,6 A *1  -  3,4 kW / 14,8 A *2
Standby power 3 W
Tightness class IP31
Ambient temperature -20 / +40 °C
External leakage < 1,82 % *3
Internal leakage < 2,04 % *4


*1 - Input without heating element (accessory)
*2 - Input Compact Polar
*3 - At ± 250 Pa according EN 308/EN 13141-7
*4 - At ± 100 Pa according EN 308/EN 13141-7

GEO3 (Heat pump)

Energy efficiency class for central heating A+++
Seasonal space heating energy efficiency 208%
Dimensions (W x D x H) 550 x 300 x 1100 mm (Integrated in Compact P2)
Compressor variable speed Ja (20 - 100%)
Installation site, room temperature 5 ºC - 35 ºC
Supply voltage and connection 400/230V 3L+N+PE, 50 Hz
Fuse size 13A / 20A
Start current, Imax, Start 14A
Standby electricity consumption 2,5 W
Supplementary electrical heating 2 kW
Rated output, brine pump (max/min). A pump 87 / 6 W
Rated current, brine pump (max/min). A pump 0,7 / 0,06 A
Refrigerant R410A
Refrigerant filling 1,1 kg
Pressostat low pressure (on/off) 2,2 / 3,4 bar
Pressostat high pressure (on/off) 42 / 33 bar
Antifreeze Ethylene glycol/water - Ethanol/water
Antifreeze, brine -20 ºC / -18 ºC
Design pressure brine/central heating side 4 / 4 bar
Opening pressure safety valve brine/central heating side 3,5 / 2,5 bar
Expansion vessel brine/central heating side 8 / 8 litres
Booster expansion vessels 0,5 bar
Environmental pressostat brine, leak alarm (on/off) 0,6 / 1,1 bar
Heat output PH with variable compressor 0,5 - 3 kW
Central heating, flow temperature, operating area 25 ºC - 45 ºC
Brine temperature to evaporator, operating area -5 ºC - 20 ºC
Central heating pressure loss, condenser 1,5 kPa / 0,14 l/s
Central heating connection 3/4"
Brine pressure loss evaporator 10 kPa / 0,19 l/s
Brine connection 1"
COP 0/35°C at max. PH, in accordance with EN14511:2012 with brine/water dT=3/5°C 4,5 (PH max 3 kW)
SCOP-tested in accordance with EN14825:2012 5,17
JAZ* 4,6
Sound output level LWA at 100% heat output 0/35°C ≤ 51 dB(A)
Sound output level LWA at 50% heat output 0/35°C ≤ 44 dB(A)
Sound pressure level LpA in 1 m at 100% heat output 0/35°C ≤ 40 dB(A)
Sound pressure level LpA in 1 m at 50% heat output 0/35°C ≤ 33 dB(A)

 *JAZ in accordance with VDI4650 liquid / water 0,35 ºC

Sound data in accordance with EN12102 and EN ISO9614-2

Capacity

Capacity of standard unit as a function of qv and Pt ext

SEL values according to EN 13141-7 are for standard units with ISO 16890 Coarse 75% (G4) filters and without heating element.

SEL values comprise the unit’s total power comsumption excl. control.

Conversion factor: J/m3 : 3600 = W/m3/h.

NB! The SEL values are measured and stated as a total value for both fans.



Temperature efficiency

Temperature efficiency as a function of volume flow qv [m3/h] for unit with counterflow heat exchanger.

Temperature efficiency according to EN13141-7 (2°C / 20°C).

NB! The temperature efficiency, is for the heat exchanger only (without heat pump operation).




COP (air-air)

Heat output factor COP [-] supply air as a function of outdoor temperature t20 [°C] and volume flow qv [m3/h] in accordance with EN14511 at a room temperature t11 = 20°C

NB! COP according EN14511 is calculated for the heat pump and counter flow heat exchanger combined.


Heat output supply air

Heat output Qc [kW] as a function of qv [m3/h] and outdoor air temperature t20 [°C]. In accordance with EN 14511, t11=20°C (extract air).

Heat output is the contribution to room heating added to the fresh air via Compact P2 to the supply air.

The ventilation loss is the heat output that is lost without heat recovery at the given volume flow air.



Cooling effect

Cooling effect Q [kW] as a function of volume flow [m3/h] according to EN14511, extract air = 27 °C, outdoor air = 35°C.

The cooling effect is the contribution added to the fresh air via the Compact P2 to the supply air.

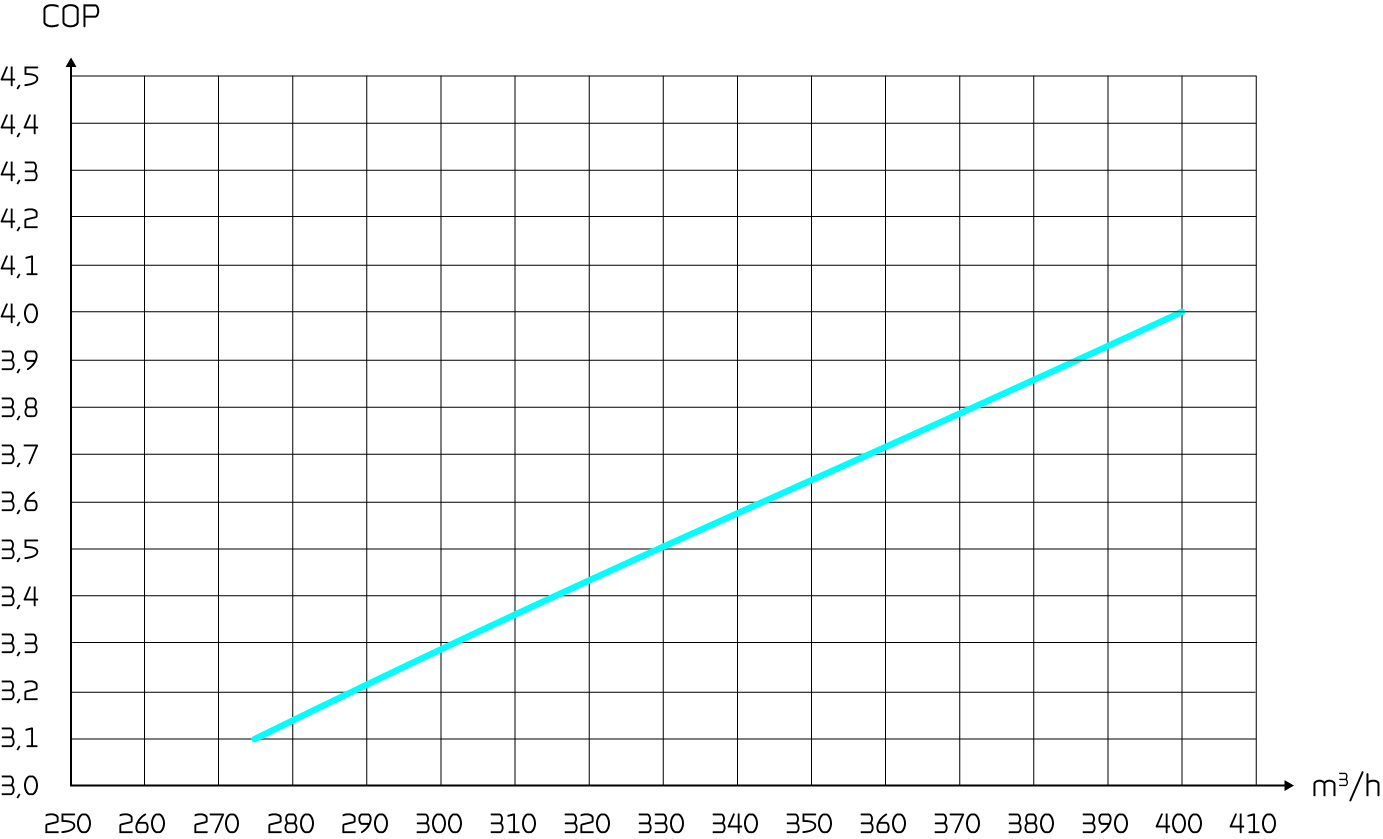

Energy efficiency ratio

Energy efficiency ratio EER [-] for supply air as a function of volume flow [m3/h] acc. to EN 14511 at extract air temp. = 27 °C and outdoor air temp. = 35 °C.

NB! COP according to EN 14511 is calculated for the heat pump and counter flow heat exchanger combined.







COP (GEO 3 heat pump)

Tested in accordance with EN14825

Sound data

Sounddata is for qv = 275 m3/h and Pt ext = 100 Pa in accordance with EN ISO 3744 for surface and EN 5136 for ducts.

Sound output level LWA drops with falling air volumes and falling back-pressure.

At a given distance, the sound pressure level LpA will depend on the acoustic conditions at the installation site.



You can download AutoCad or Revit drawings with BIM data on several Nilan ventilation and heat pump solutions - the list is constantly being expanded.
With BIM data, you get all the necessary technical data to draw and calculate Nilan constructions in 3D.

Click here to get more about BIM data on Nilan units


All dimensions are in mm.

Connections:
1. Outdoor air
2. Supply air
3. Extract air
4. Discharge air

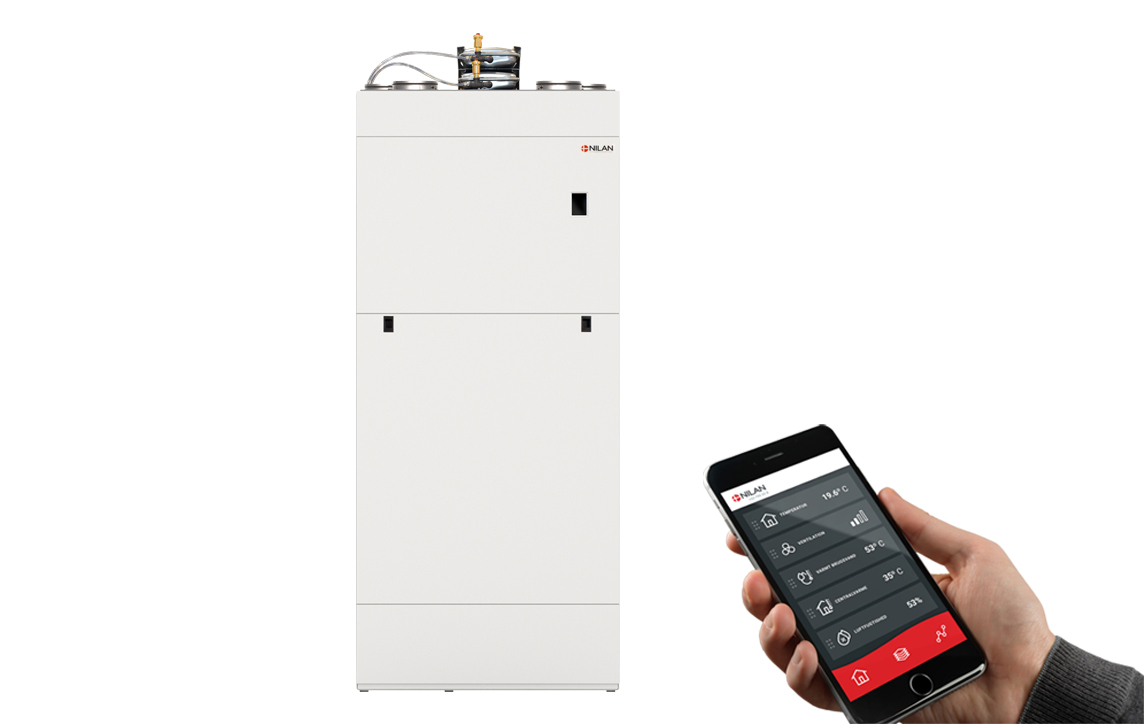

The CTS602 control system is an advanced control system with many settings options. The control system is supplied with factory default settings that can be adapted to the operational requirements in order to achieve best possible operation and utilisation of the unit.

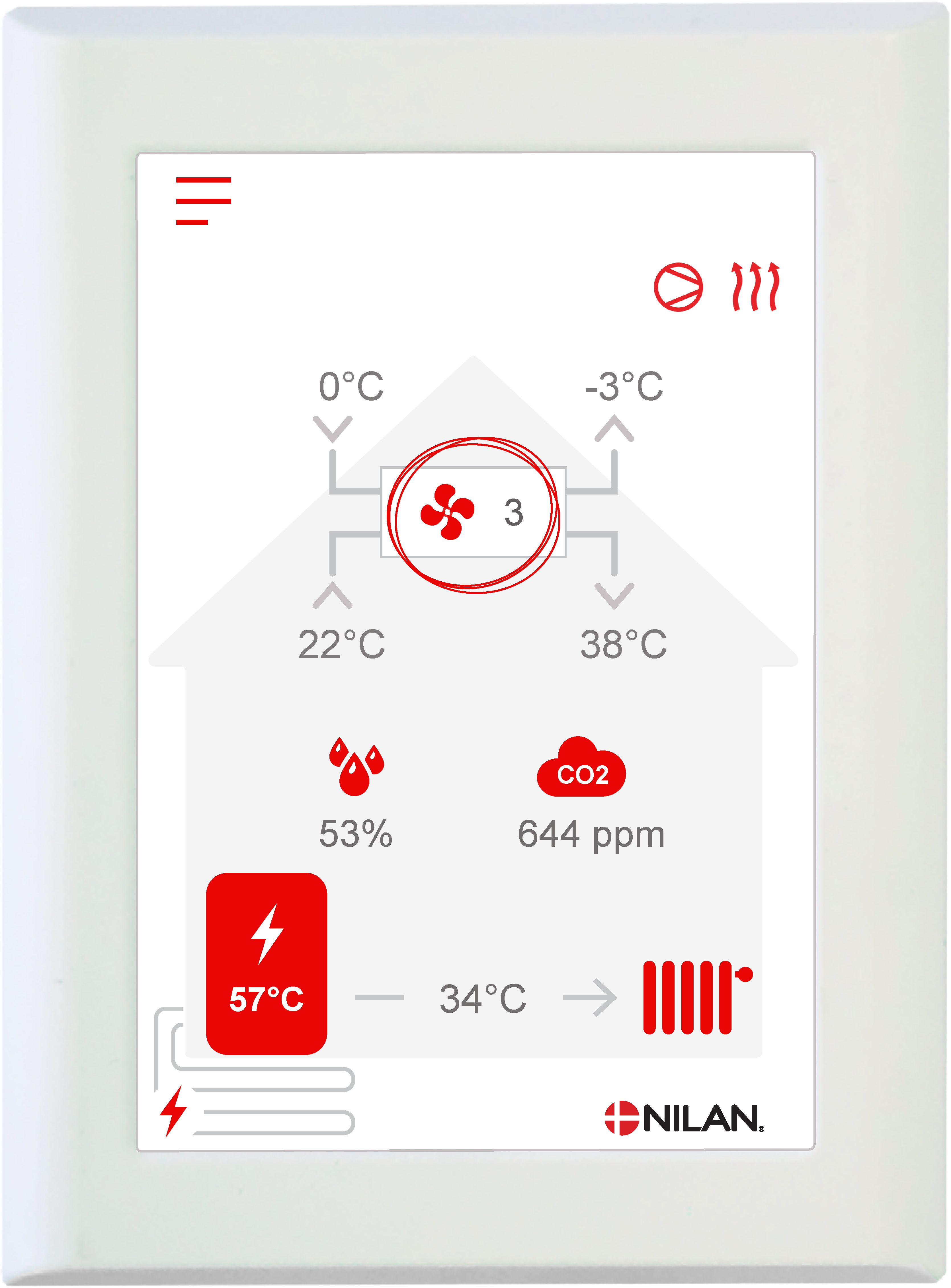

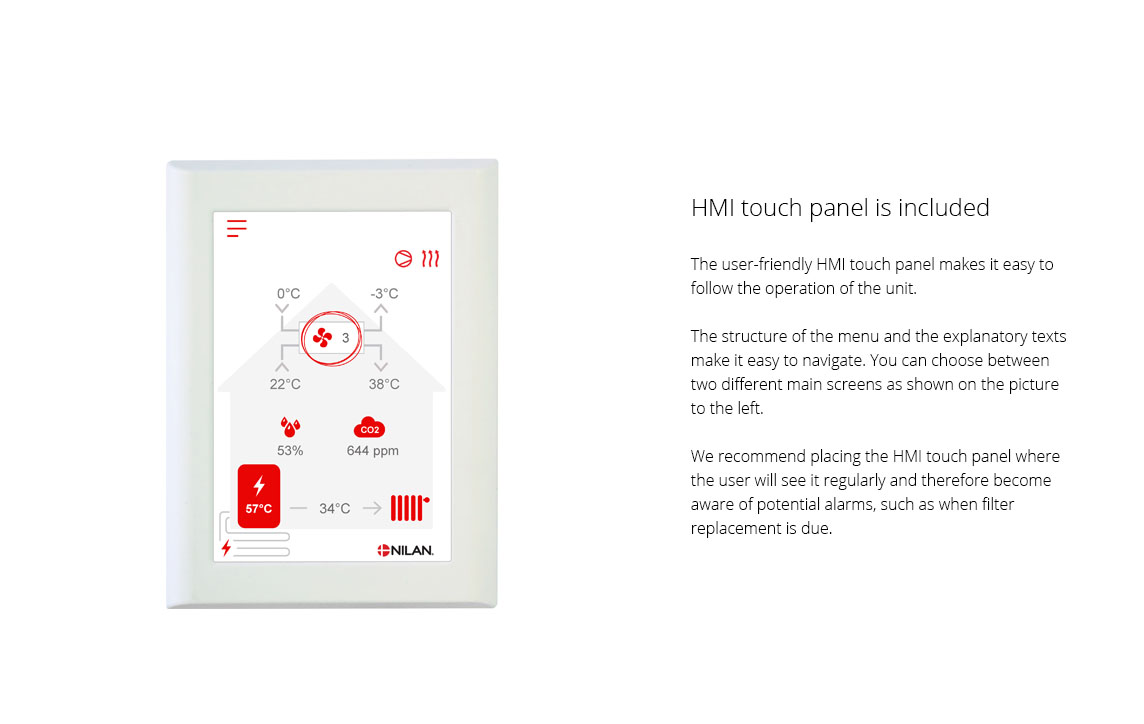

The HMI Touch panel provides an overview of the current operation of the unit. The structure of its menu makes it easy to navigate for both user and installer. You can choose from 2 different images for the main screen.

External communication
The CTS602 control system has an open Modbus RS485 protocol that can be used for communication via external CTS systems. The Modbus connection is used for e.g. Schneider's IHC or KNX systems.

Functional overview   +Standard
-Accessories

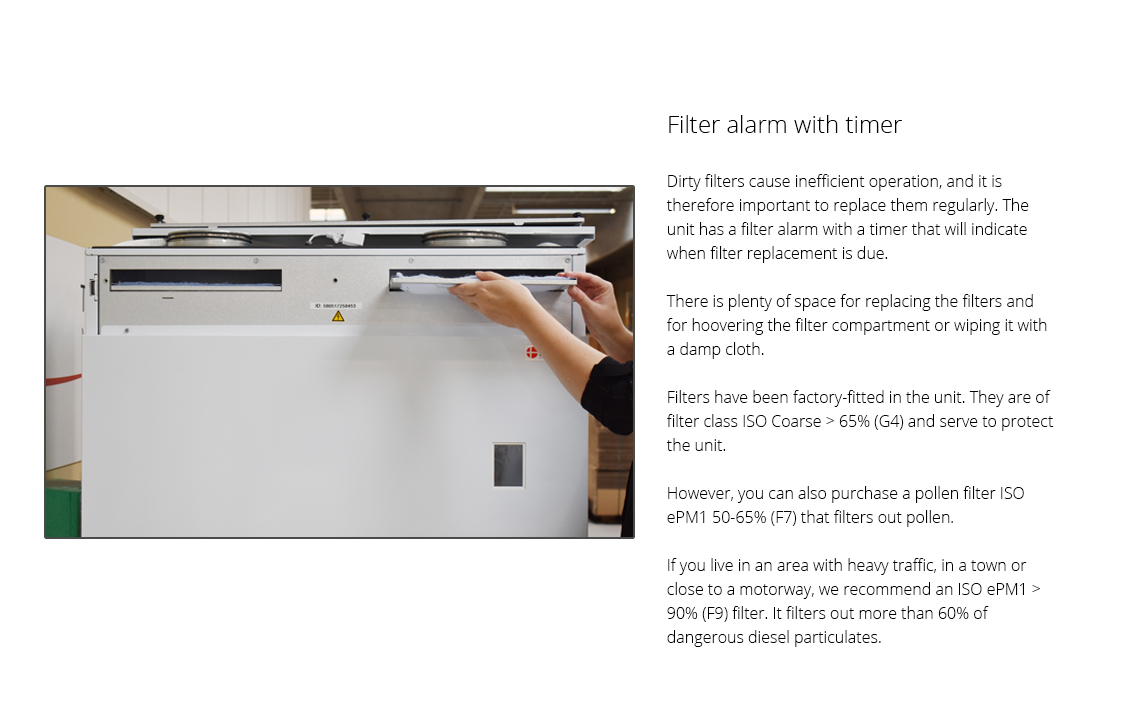

Filter monitor Filter monitor with timer notifies when it is time to change filters. Can be set between 30 and 180 days. +
Operating mode Can be set to Auto according to set values or set to heating or cooling mode. +
Stepless regulation The four ventilation steps can be set steplessly 20-100%, with various values for supply air and exhaust air. +
Humidity control Built-in humidity control can be set to high ventilation operation at high humidity (when in the shower) and low ventilation operation if the humidity in the home becomes too low. +
Active cooling The unit can be set to cool the supply air in the summer, should the need arise. When the heat pump cools, the heat is deposited in the hot water tank, so that you get “free” hot water when the unit is in cooling mode. +
Low outdoor temperature It is possible to lower the ventilation at low outdoor temperature, to avoid the indoor humidity becoming too low. +
CO2 control It is possible to control the ventilation level according to the CO2 level in the home. -
Temperature settings The temperature settings are used by the controller to regulate the operation of the entire system. +
Frost protection The control has an automatic function for defrosting the heat exchanger to prevent formation of ice. +
Frost protection Polar The Polar model has a built-in frost protection preheater to protect the counterflow heat exchanger so no ice occurs. +
Frost protection EHD The control system can control an EHD damper which is used if the outdoor air is supplied via a geothermal tube or a roof stack. The control system automatically selects the best solution. +
Frost protection BAH The control system can control a pre-heating element that is supplied with energy from a geothermal tube. This solution can heat the outdoor air in the winter and cool the outdoor air in the summer. +
Domestic hot water Compact P produces the domestic hot water via the air / air heat pump in the ventilation part. +
Pause domestic hot water It is possible to set the hot water production on pause e.g. if no one is at home. In that way, energy is saved. +
Frost protection domestic hot water To protect the hot water tank, it is fitted with a frost protection function. +
Supplementary electrical heater domestic hot water

If the need for domestic hot water increases and the heat pump cannot keep up, a supplementary electrical heater can be activated to heat the domestic hot water.

 +
Anti-scald protection The control has a built-in scalding protection, which prevents scalding of the users when the hot water tap is opened. +
Anti-Legionella The control has an Anti-Legionella treatment of the domestic hot water that can be activated manually or automatically. +
Anode Electronically monitored anode. Notifies when it is time to replace it to ensure a long service life of the hot water tank.
SHW tank An additional hot water tank SHW can be connected to the GEO geothermal heat pump and preheat the hot domestic water to 45 ºC before it enters the Compact P2 hot water tank. +
GEO domestic hot water If you order Compact P2 with a solar coil, you can connect the GEO geothermal heat pump to the Compact P2 hot water tank. The heat pump can then help produce domestic hot water. This is a good solution if the requirement for domestic hot water is high and there is insufficient space for an SHW tank. +
GEO heat pump on/off If the GEO geothermal heat pump is not to heat the dwelling for a period of time, it must be switched off manually. +
Cooling/heating simultaneously The control system ensures that the GEO geothermal heat pump cannot heat the dwelling when Compact P2 is in cooling mode. However, if you still want e.g. the bathroom floor to be warm in the summer, you can set the control system to cool and heat simultaneously. Compact P2 will then no longer prevent the GEO geothermal heat pump from providing heat. +
Weather compensation The flow temperature can be set to follow the outdoor temperature. +
Passive cooling You can cool the dwelling through the underfloor heating system or via fan coils. Passive cooling means that the temperature from the brine circuit is used for cooling. +
Week program You can set up a week program with different settings depending on how much the dwelling is being used. +
Smart Grid Compact P2 GEO is certified in accordance with the German Smart Grid, which allows the electricity provider to override the operation so it becomes as cost effective as possible for the user.  +
User selection program 1 A user selection program enables you to use special settings that override the standard operating settings via a potential-free signal. Used e.g. if a cooker hood is connected to the system. +
User selection program 2 Used as user selection 1, but at the same time has an output signal that can be used e.g. to control a damper. +
Datalog Data logging as well as error messages and warnings. +
Output data All current values in the system operation. Most often used for troubleshooting. +
Emergency stop ventilation Do not turn off the ventilation, as this may damage the unit, duct system and in the worst case the home. But it may be necessary to briefly turn off the ventilation e.g. due to a emergency notification. +

You can find further information about all the functions in the Software and Installation instructions for the unit.



ATTENTION! When positioning the unit, you should always consider future services and maintenance. It is recommended that you leave a minimum of 60 cm of clear space in front of the unit.

It must be easy to replace filters and it must be possible to replace, for instance, fans and other components.

ATTENTION! The unit must be level to enable proper drainage from the condensate tray.

  • Connect the ventilation part to the duct system via spouts at the top of the unit.
  • Connect up the domestic hot water under the hot water tank to the right.
  • The brine circuit and the central heating circuit are connected under the geothermal heat pump on the left side of the unit.

Smart Grid

Compact P2 has been certified in accordance with the German Smart Grid, which allows the electricity provider to override the operation so it becomes as cost effective as possible for the user.

The Smart Grid solution can also be used in connection with solar cells if you want to optimise operation at times when most energy is being produced.


Download ecodesign datasheet here Download ecodesign datasheet here Download ecodesign datasheet here



Accessories
