VPR 120

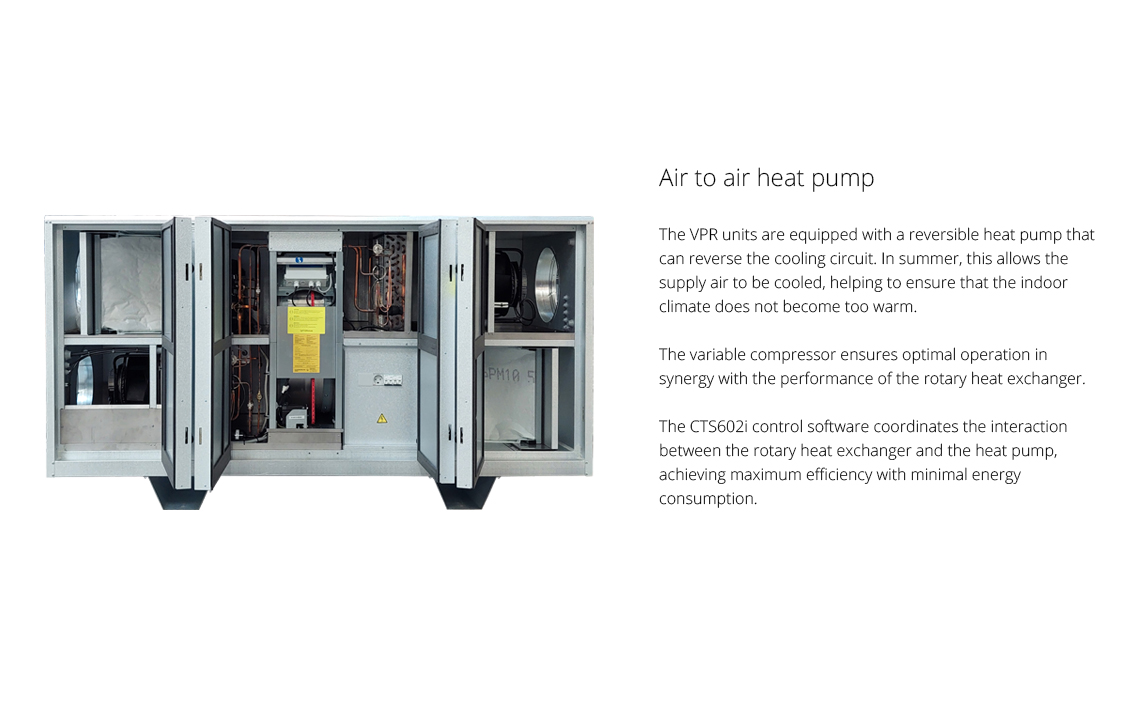

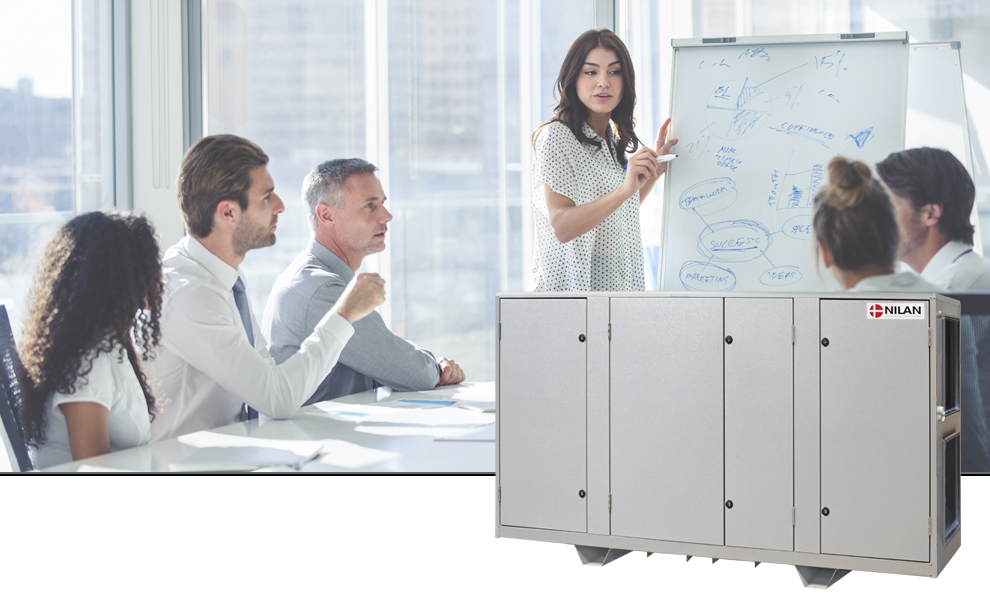

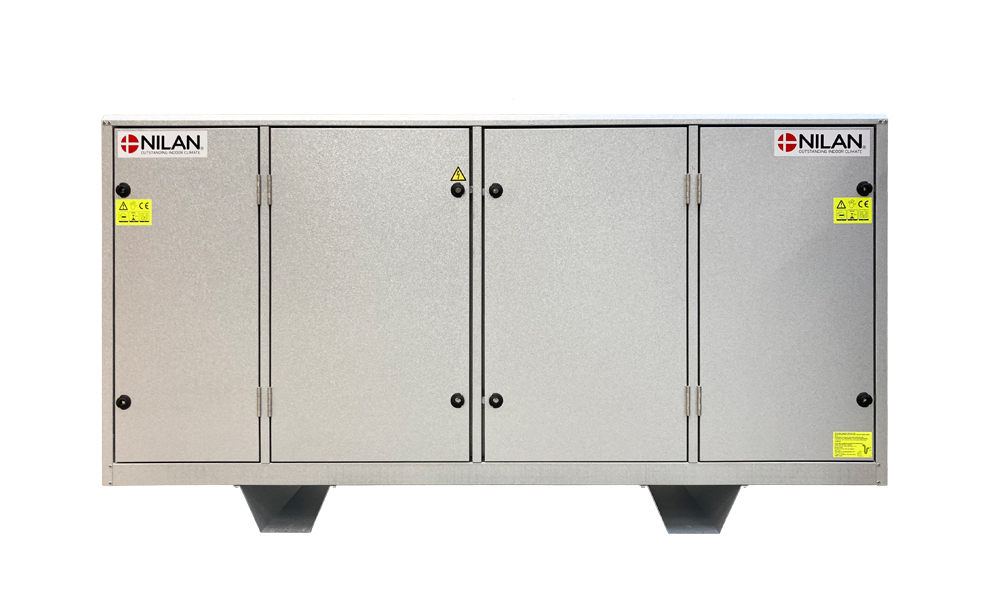

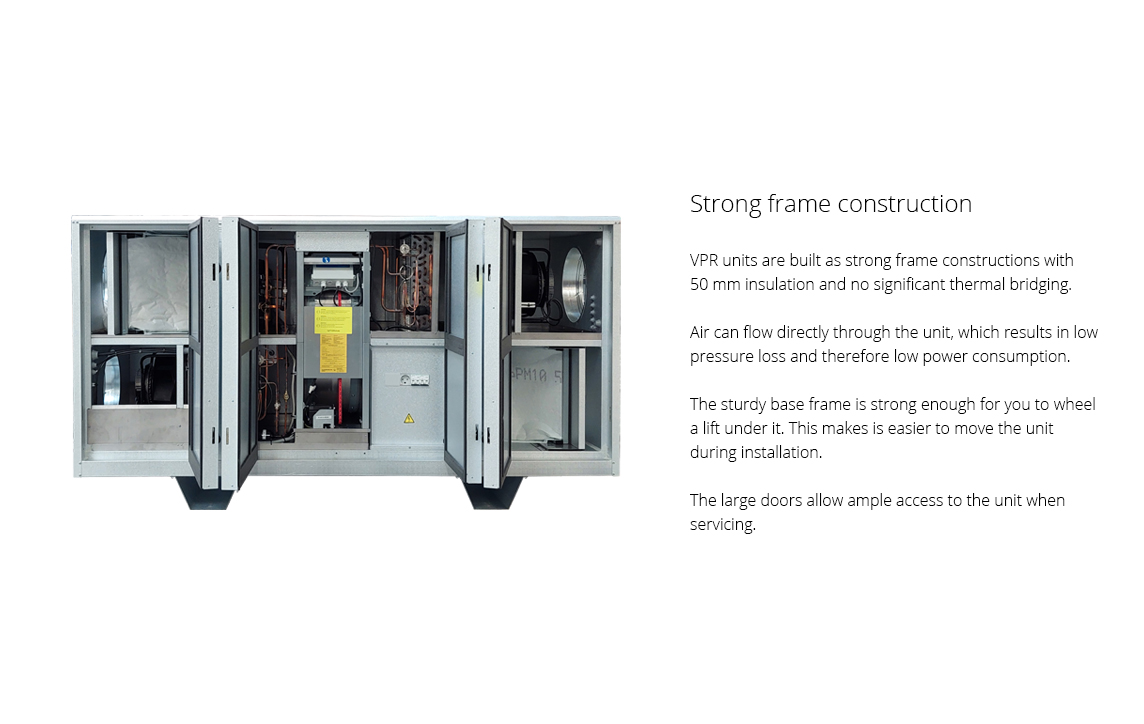

VPR 120 is a ventilation unit with heat recovery via a rotary exchanger in combination with a heat pump. The heat pump has a reversible cooling circuit and it can cool or heat supply air according to requirement.

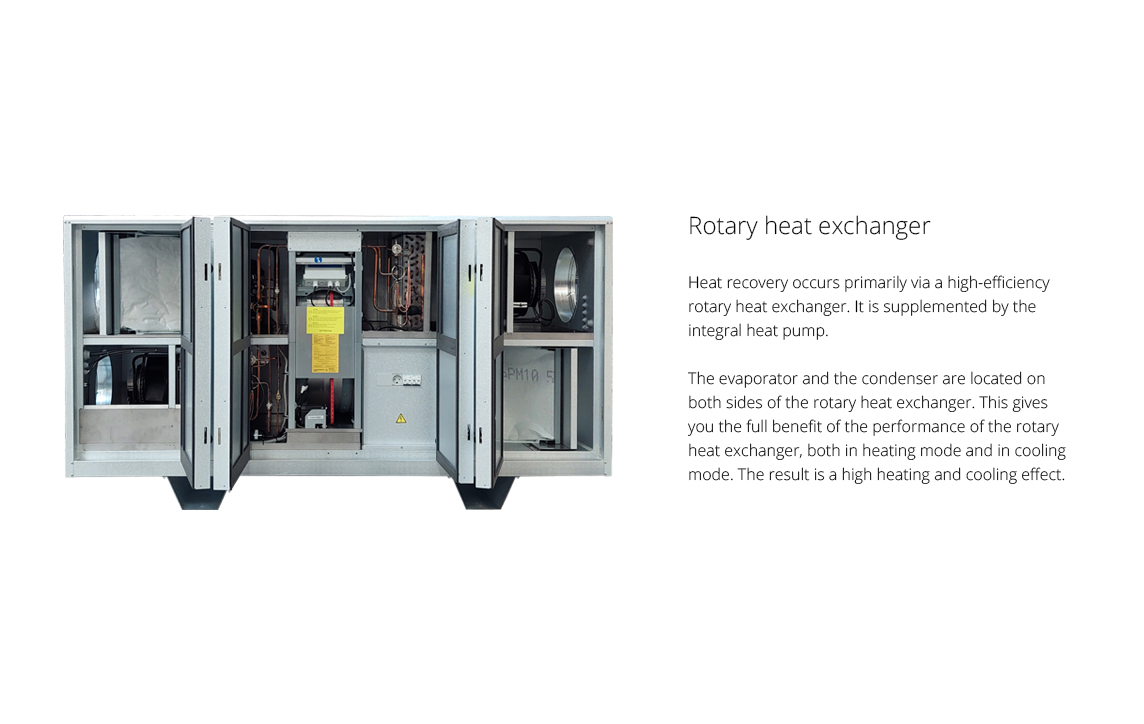

The unit achieves a very high cooling and heating effect and therefore also a good COP. This is due to the rotary exchanger in combination with optimal positioning of condenser and evaporator. The variable speed drive compressor of the unit enables precise regulation of the supply air temperature.

VPR 120 is often used in buildings with cooling requirements, such as office buildings, retail premises, concert halls etc.


Airflow (see planning data for SEL/SFP values)

Min : 400 m3/h
Max : 1950 m3/h
Dimensions (W x D x H) 2100 x 810 x 990 mm
Weight 315 kg
Plate type casing Aluzinc steel plate
Fan type Low-energy EC-ventilators with B-wheel
Filter class Standard bagfilter ISO ePM10 >60% (M5) extract air and ISO ePM1 50% (F7) fresh air
Duct connections Ø 315 mm
Condensation outlet PVC Ø 20 x 1,5 mm
Power supply 3 x 400V + N, 50 Hz
Max. phase current 3 x 16 A (does not include accessories)
Tightness class DS/EN 1886 L2
Variable compressor Frequency controlled
Refrigerant cooling circuit R 410 A / 1,6 kg
Condenser/evaporator (HxW) 404 x 400 mm
Condensation capacity 2,5 l/h (25 °C / 70% RH, nominal air volume)



Motor and motorcontrol

Motor type EC-motor
Motor class according to IEC 60034-30 IE3 (Premium efficiency)
Voltage input 1 x 230 V
Current overload protection Built-in
Control signal 0 - 10 V
Fluid temperature (air) -20 / +40 ºC
Ambient temperature (operating) -20 / +40 ºC

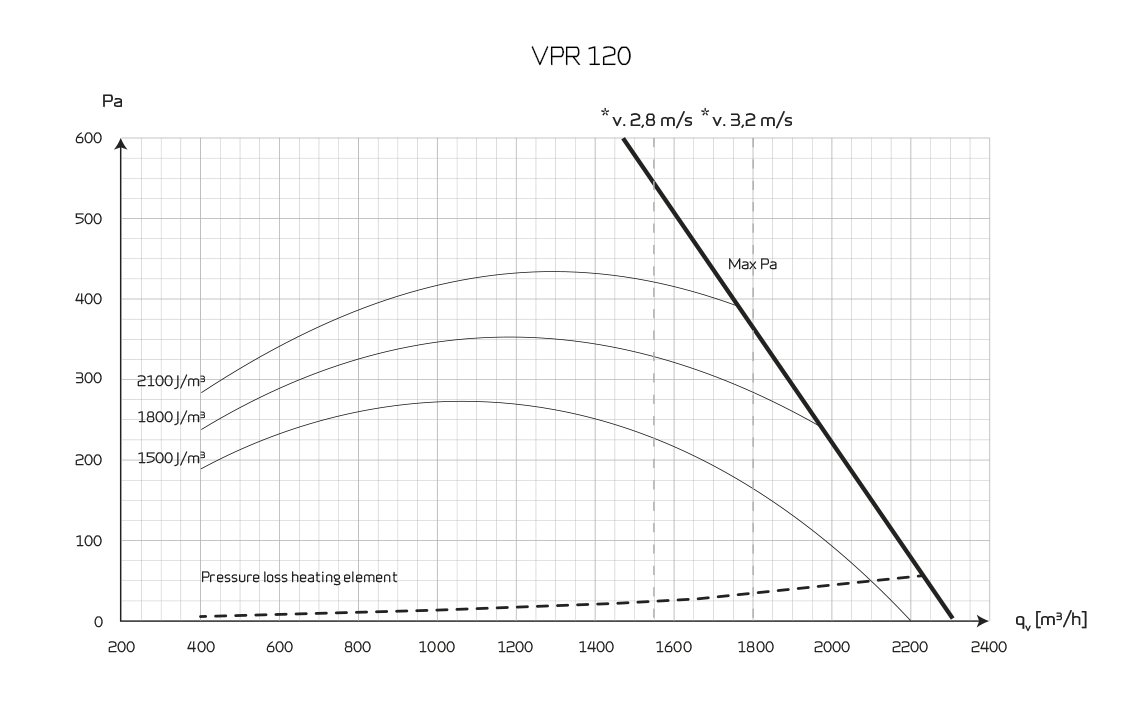

Capacity (condensation exchanger)

The following design data is calculated on the basis of a condensation exchanger.

Max Pa capacity of standard unit, Pt,ext as a function of qv, with regard to SFP-values.

SFP-values according to EN13053 for a standard unit with ISO ePM10 >60% (M5) & ISO ePM1 50% (F7) filters an no heating element.

* Airflow speed above evaporator is measured at meters per second.

Attention! The SFP values are measured and stated as a total value for both fans.

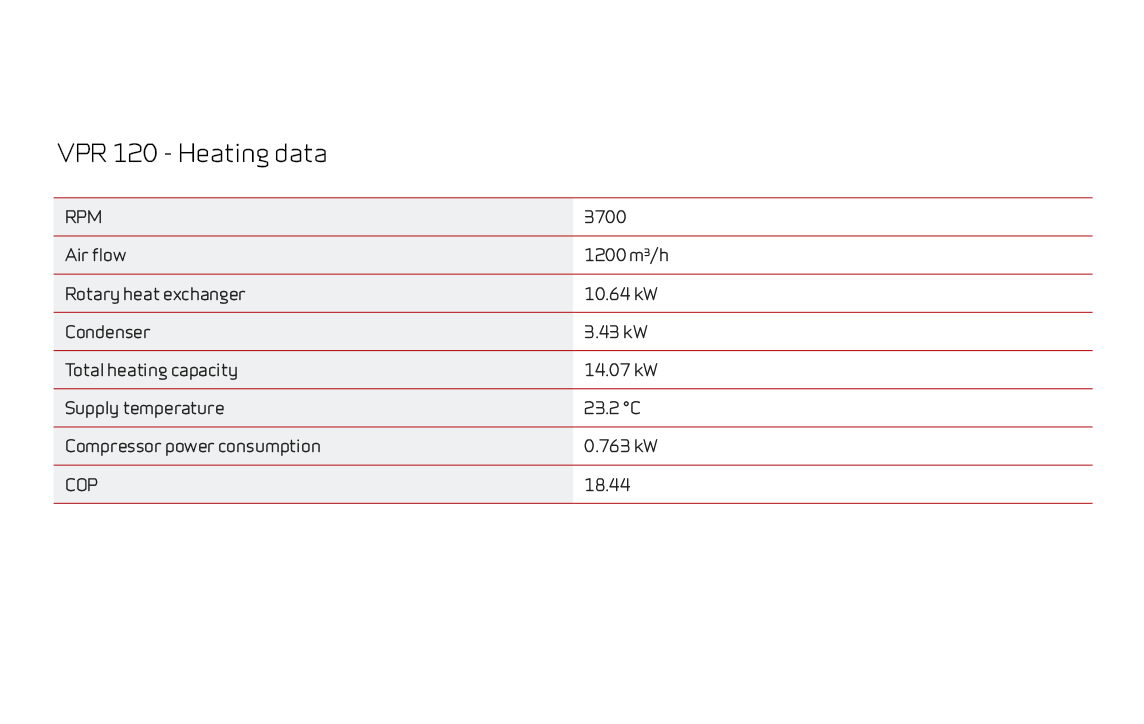

Heating data (condensation exchanger)

The following design data is calculated on the basis of a condensation exchanger.


Heating data are calculated with the following temperatures:
Outdoor temperature: -7 ° C
Indoor temperature: 20 ° C

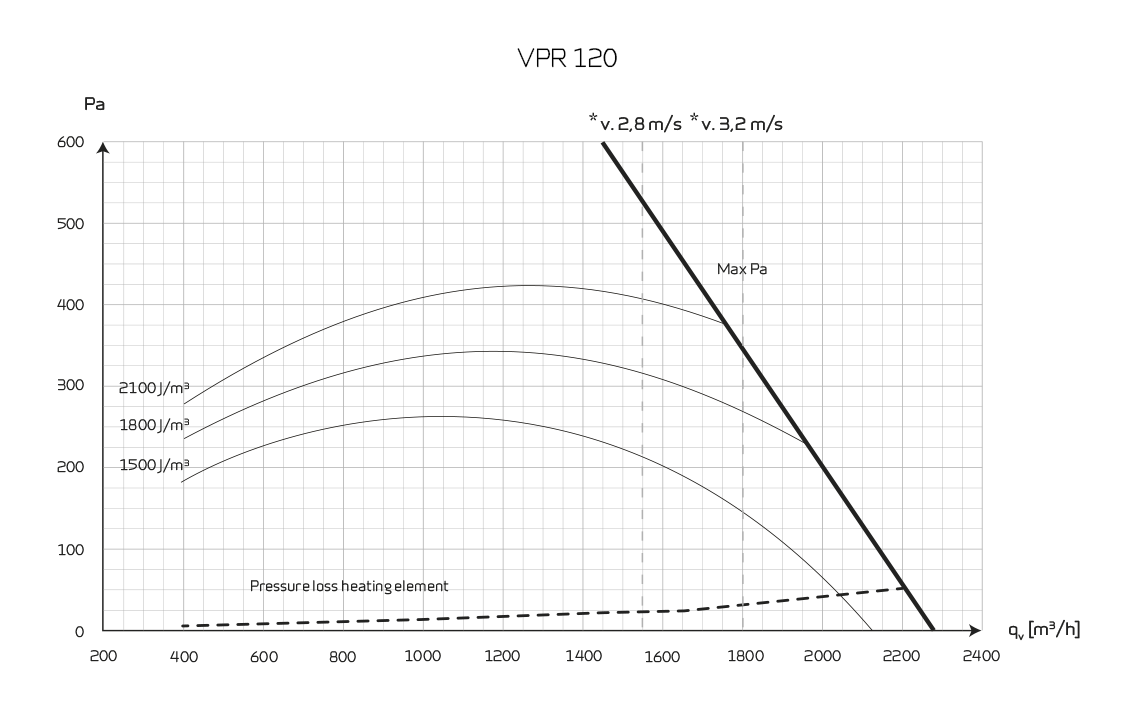

Capacity (sorption exchanger)

The following design data is calculated on the basis of a sorption exchanger.

Max Pa capacity of standard unit, Pt,ext as a function of qv, with regard to SFP-values.

SFP-values according to EN1353 for a standard unit with ISO ePM10 >60% (M5) & ISO ePM1 50% (F7) filters and no heating element.

* Airflow speed above evaporator is measured at meters per second.

Attention! The SFP values are measured and stated as a total value for both fans.

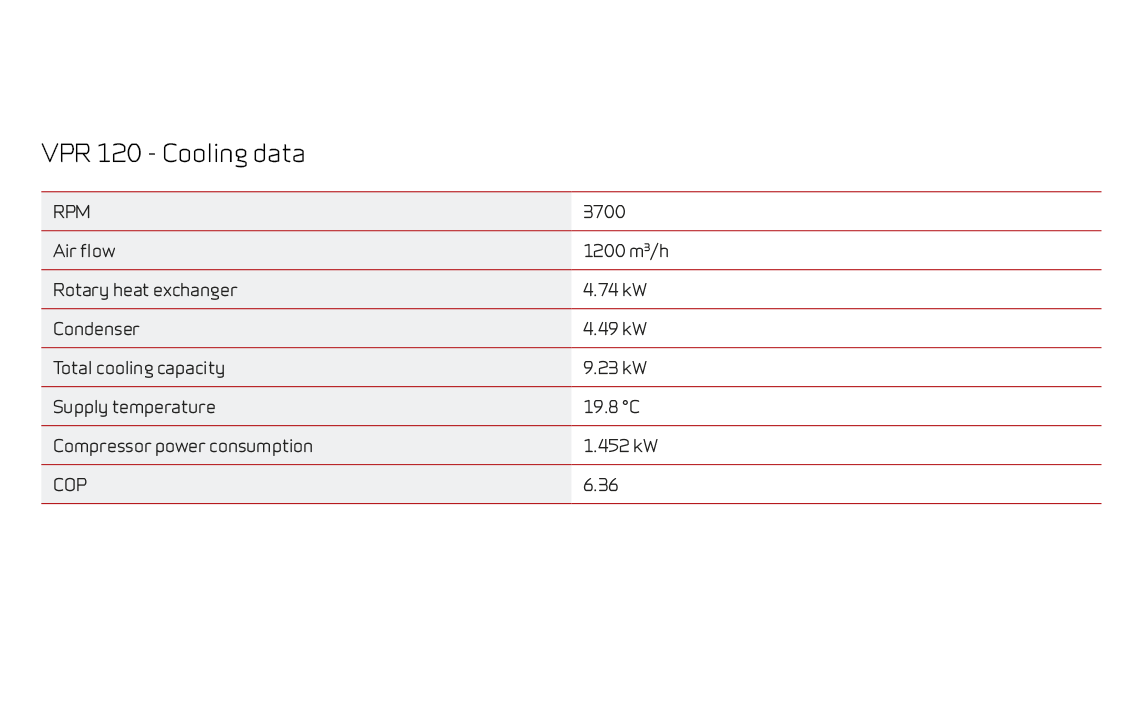

Cooling data (sorption exchanger)

The following design data is calculated on the basis of a sorption exchanger.


Cooling data are calculated with the following temperatures:
Outdoor temperature: 35 ° C
Indoor temperature: 27 ° C

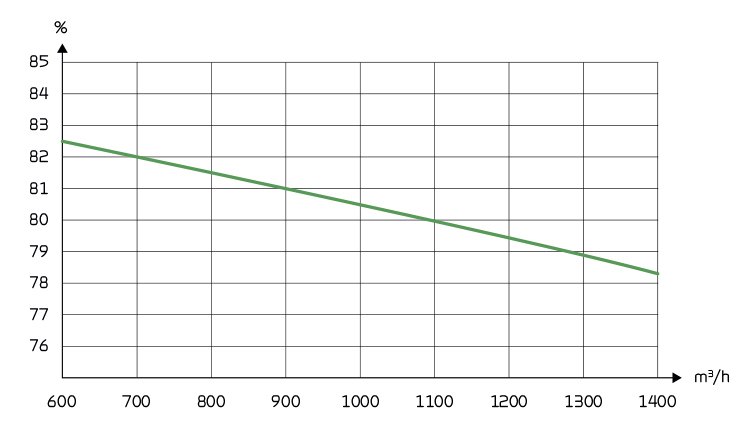

Temperature efficiency

Temperture efficiendy for rotatry heat exchanger according to EN308 (dry).

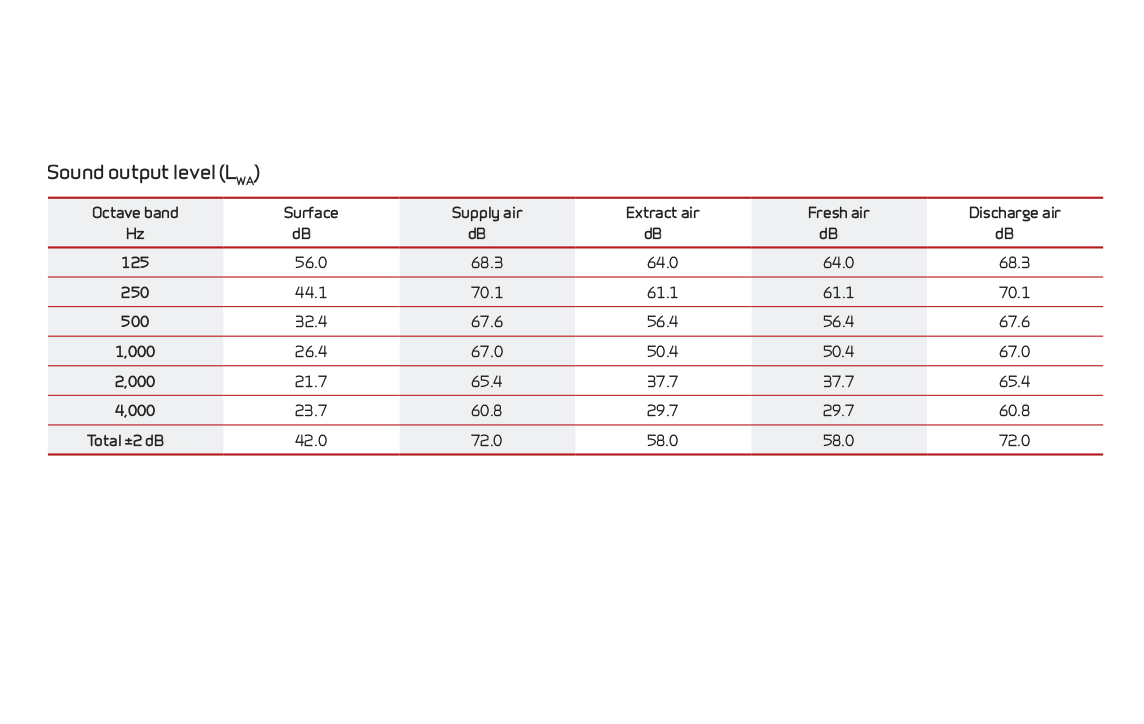

Sound data

Sound data for qV = 1200 m3/h and Pt, ext = 250 Pa according to EN 9614-2 for surfaces and EN 5136 for ducts.

Sound output level LWA drops with falling air volume and falling back pressure.

Sound output level LpA at a given distance will depend on acoustic conditions in the place of installation.

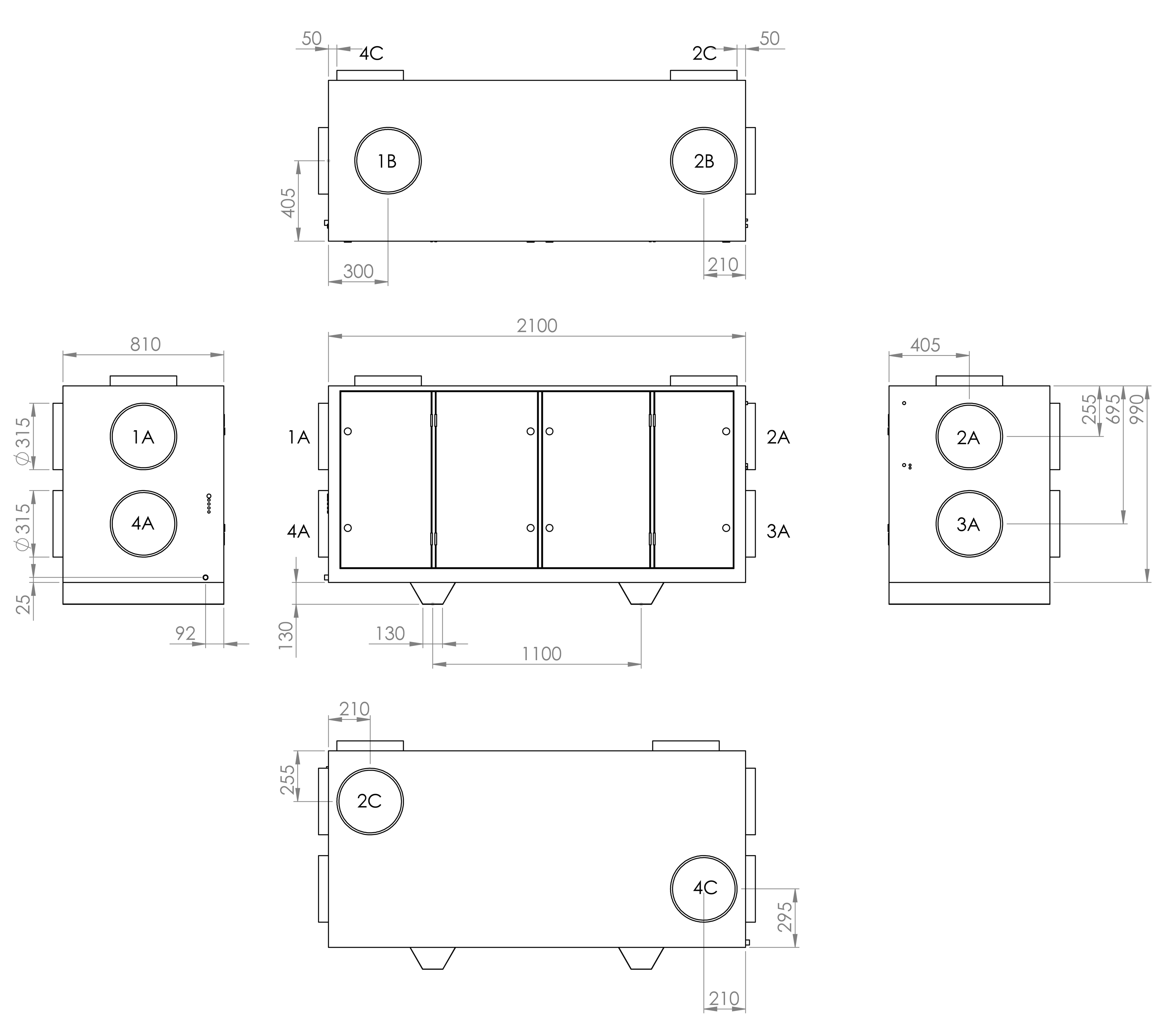

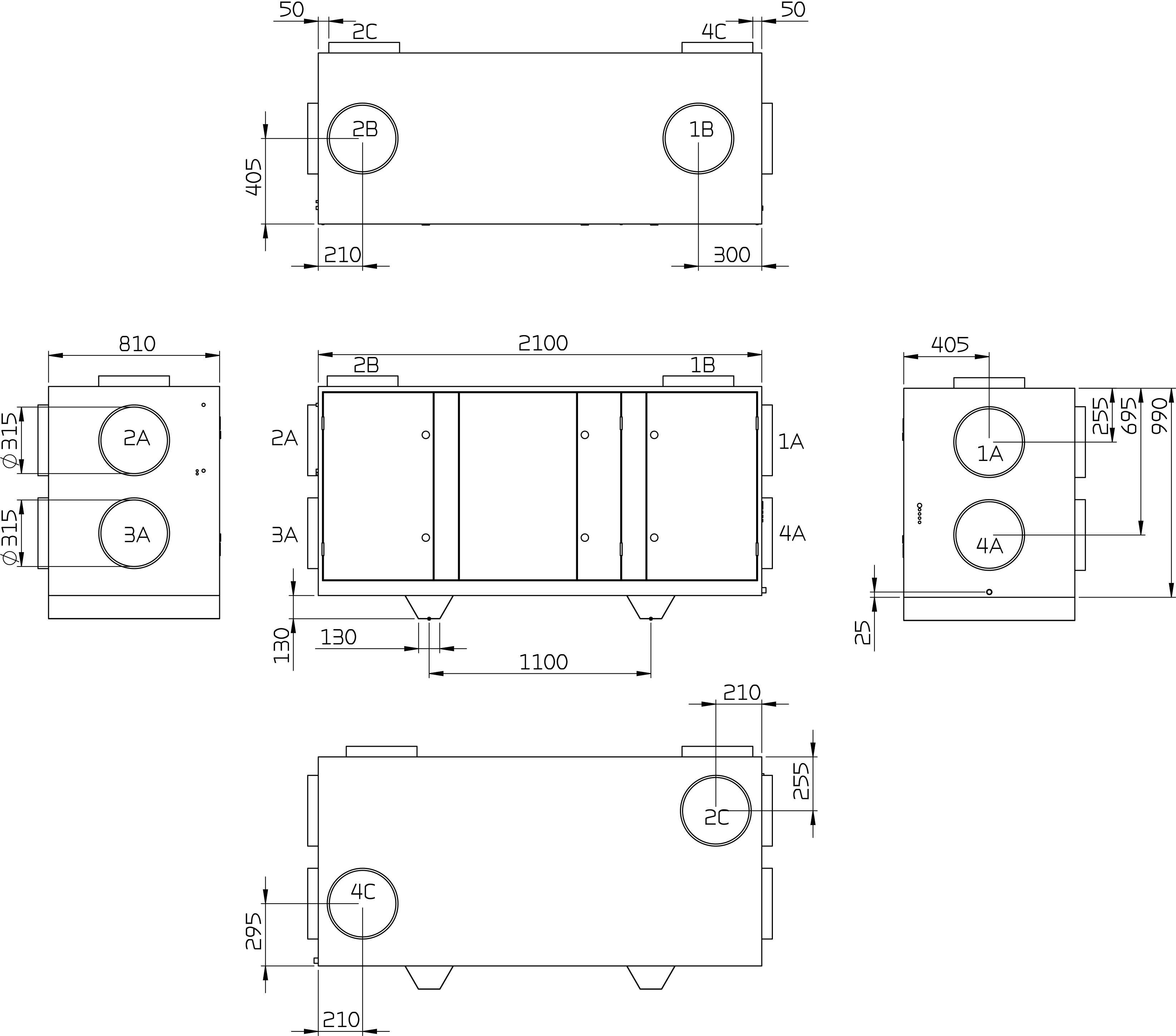

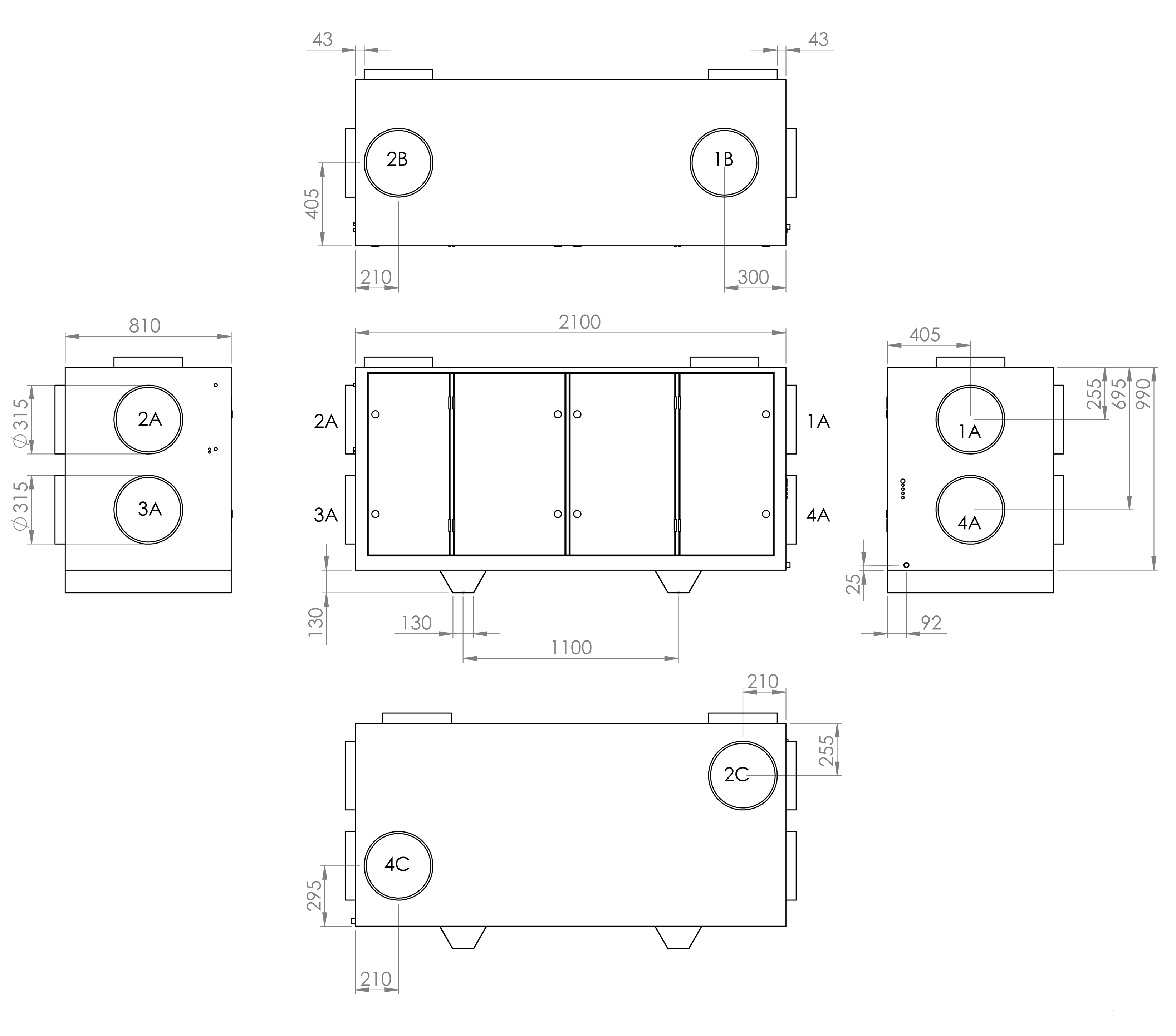

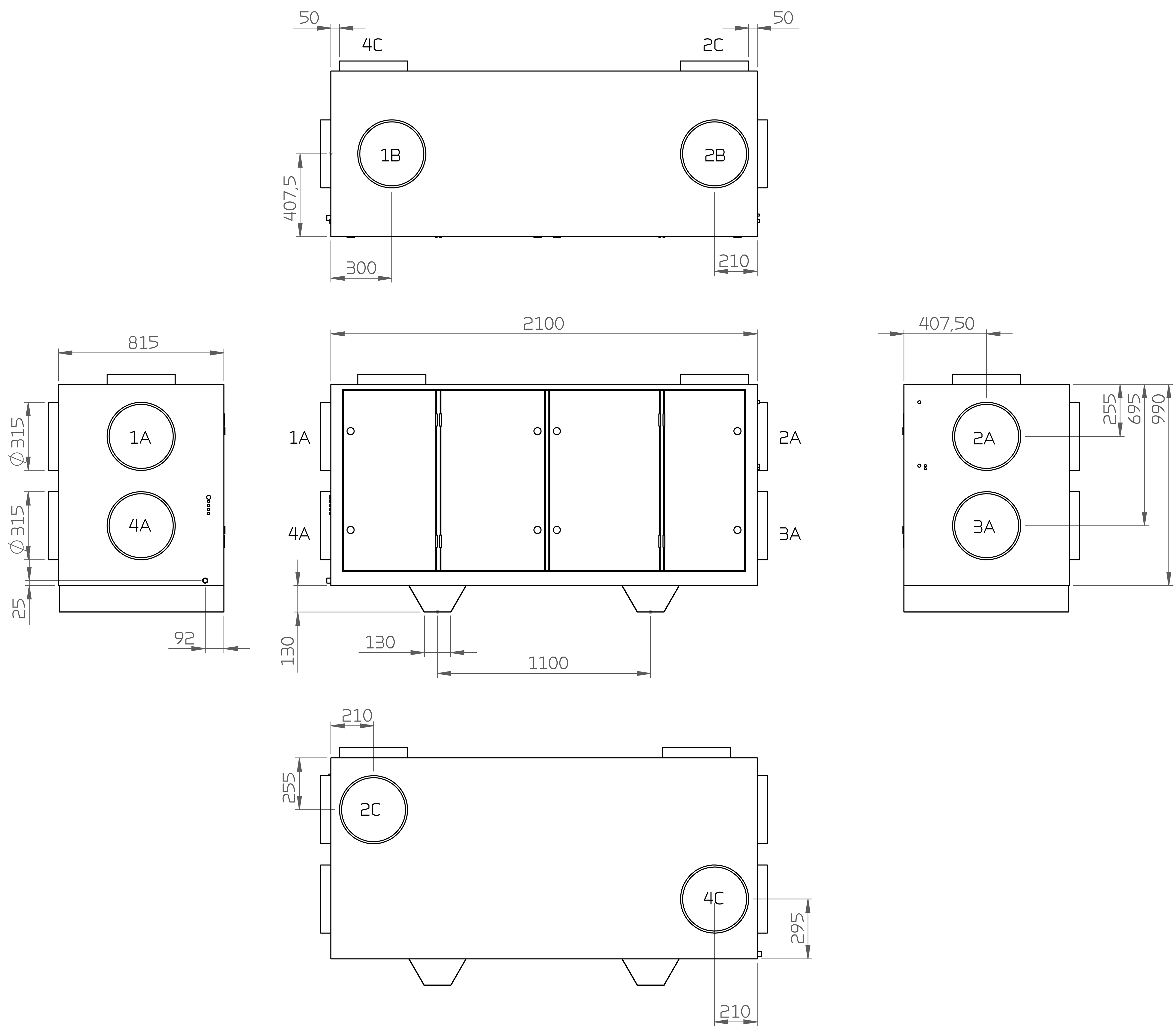

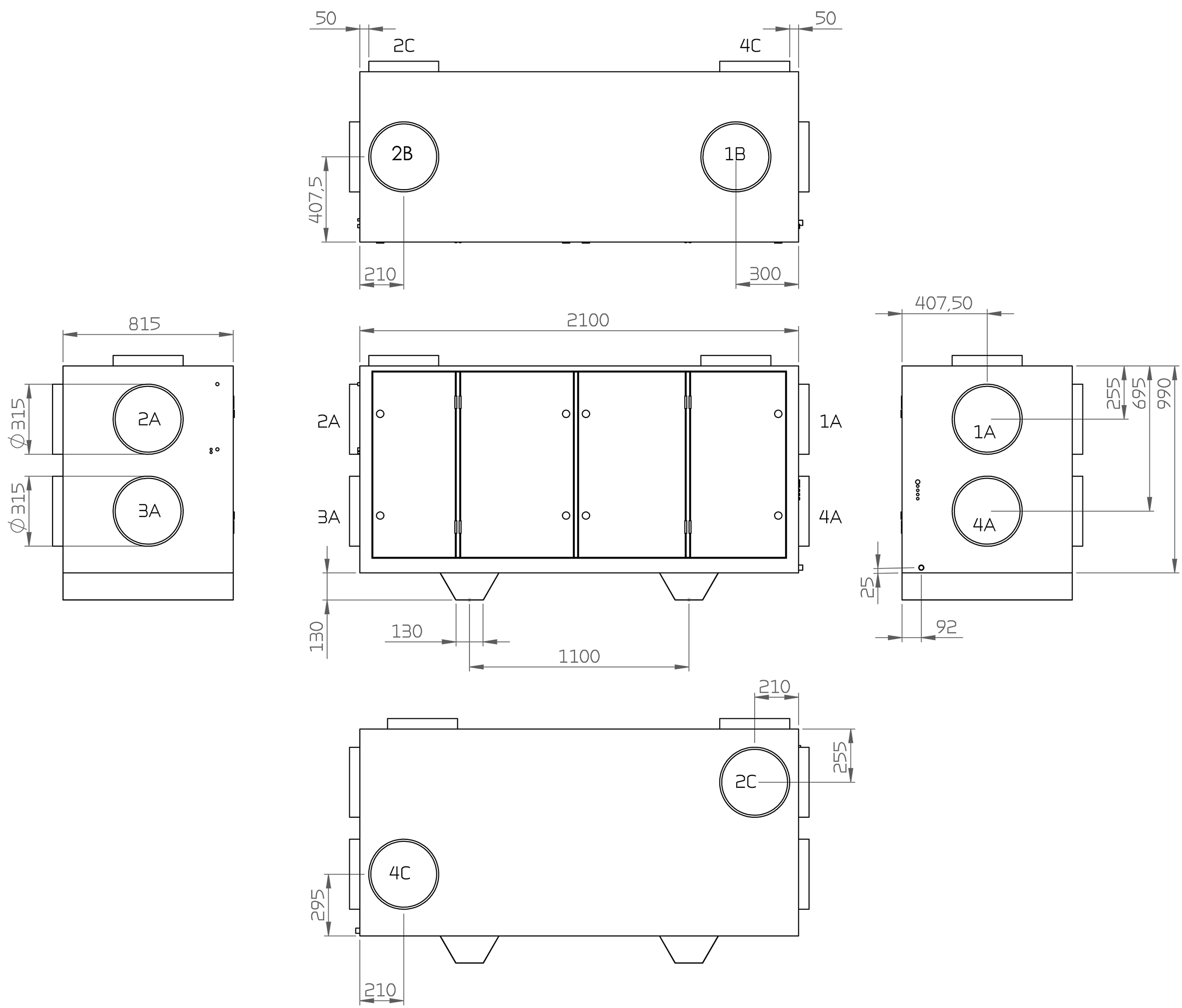

Dimensional drawing VPR 120:

The dimensional drawing is a left version.
The unit can also be delivered in a right version.



All dimensions are shown in mm.

1. Outdoor air
2. Supply air
3. Extract air
4. Discharge air

A. Gable location
B. Top location
C. Rear location

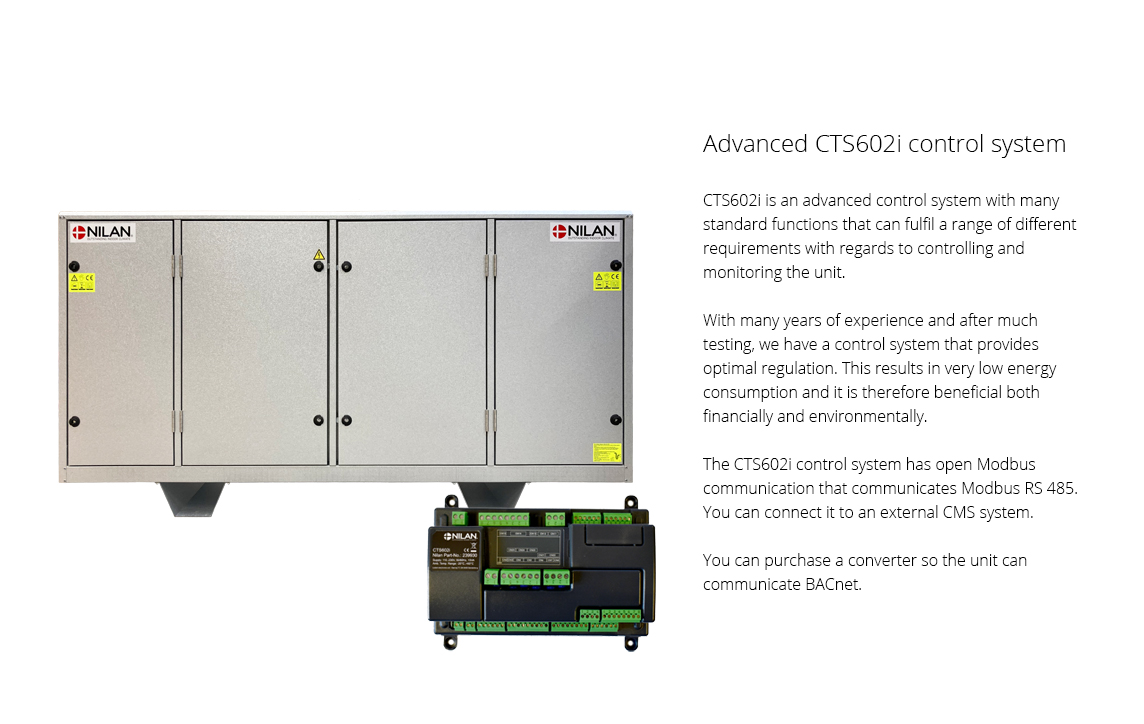

The CTS602 control system is an advanced control system with many settings options. The control system is supplied with factory default settings that can be adapted to the operational requirements in order to achieve best possible operation and utilisation of the unit.

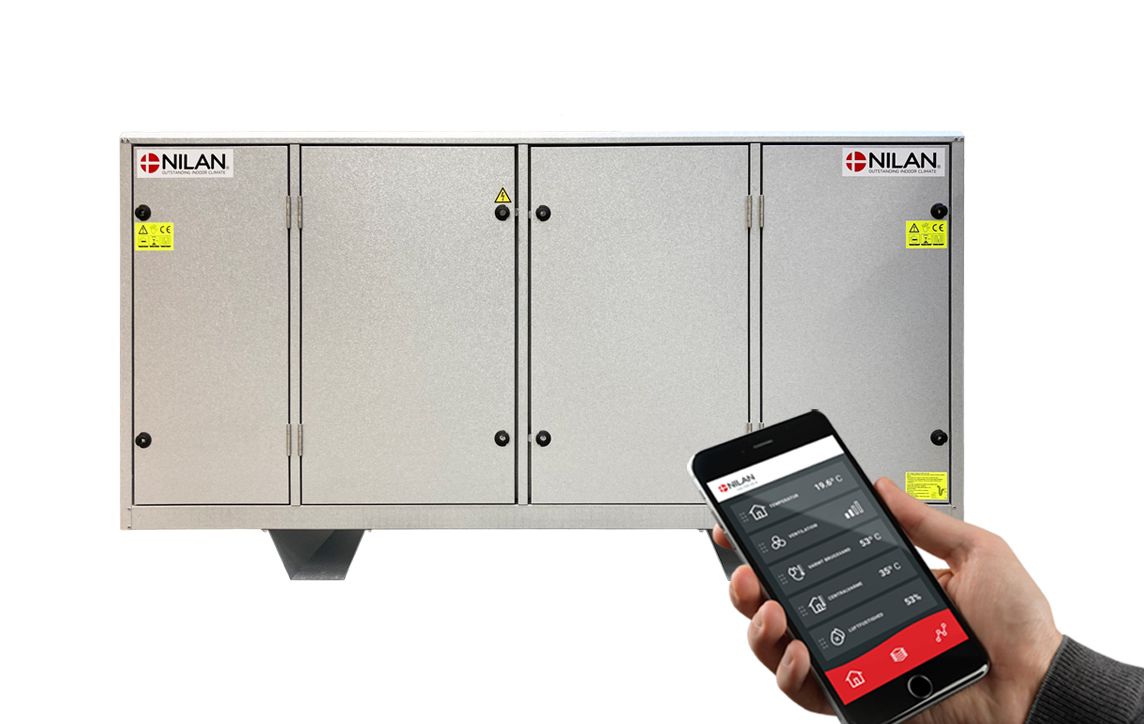

The HMI Touch panel provides an overview of the current operation of the unit, and the structure of its menu makes it easy to navigate for both user and installer. There is an option for selecting between 2 front page images for the main screen.

External communication

The CTS602i control unit communicates by default with Modbus RTU RS485 communication. A CTS system using this form of communication can easily be connected to the unit.

Functions overview   +Standard
-Accessories
Alarms Description of errors indicated with alarms. Alarm log displaying the latest 16 alarms. +
Joint alarm The CTS602 control system has an output signal that is activated in the case of an alarm. It can be connected to, for example, external automation.
Filter monitor Filter alarm with timer that can be set to 30/90/180/360 days. +
Data display An overview of the current operation with regards to temperatures, fan speed level etc. +
Week program The CTS602 control system has 3 week programs that can be set individually (the default setting is “off”). +
Humidity control Enables a higher or lower degree of ventilation at a high/low level of humidity. -
Air quality Enables you to adjust the degree of ventilation depending on the CO2 level in the air. -
Winter low You can prevent a low level of humidity in the dwelling by activating low ventilation at low outdoor temperatures. +
Temperature regulation Enables you to control the operation of the unit in accordance with the room temperature. +
Summer/winter mode You can set the unit to operate in summer or winter mode.
Language You can choose from more than 10 languages in the control panel. +
User levels The menu in the control panel is divided into 3 user levels: User/Installer/Factory. +
User selection 1 Enables you to override the operating mode via an external potential free signal. +
Electrical after-heating element An electrical after-heating element allows you to control the supply air temperature. In this way the unit can help heat the dwelling. -
Water after-heating element A water after-heating element allows you to control the supply air temperature. In this way the unit can help heat the dwelling. -
Frost protection In order to protect a potential water after-heating element against frost damage, the unit will stop and display an alarm if the temperature in the water after-heating element becomes too low. -
Air exchange Stepless setting of four fan speed levels. The supply air and the extract air can be set individually. +
De-icing Based on temperature, this automatic function de-ices the counterflow heat exchanger if ice has formed within it. +
Room low Safety function that will cause the ventilation unit to stop if the heating system for the dwelling fails. This will prevent the unit from cooling the dwelling even further. +
External heating The ventilation unit can control an external heat supply in accordance with the current room temperature. +
External fire automation system You can connect the ventilation unit to an external fire automation system or to a fire thermostat. This will signal to the unit whether to stop or continue operation. +
Integral fire automation system The ventilation unit is available with an integral fire automation system that can control fire and smoke dampers. -
Pressure control regulator You can install a pressure sustaining regulator on the side of both the extract air and the supply air. -
Delayed start-up You can activate a delayed start-up of the fans if you install, for instance, a shut-off damper. +
Restore settings You can save the current settings and subsequently restore them if, for instance, the user has altered the settings on the unit. You can also reinstall the default settings. +
Manual operation Different functions can be tested manually. +
Energy saving function You can activate a power saving function of the operation. +
Modbus  You can set the Modbus address of the unit. The default setting is 30. +
Data logging It is possible to log the operational data of the unit every 1 - 120 min. Alarms are logged when they occur. +
Control panel You can choose from 2 different images for the main screen. +

You can find further information about all the functions in the Software and Installation instructions for the unit.
