Combi S 302 Polar Top

Combi S Polar Top is a ventilation unit with heat recovery that is typically used in apartments and single-family dwellings.

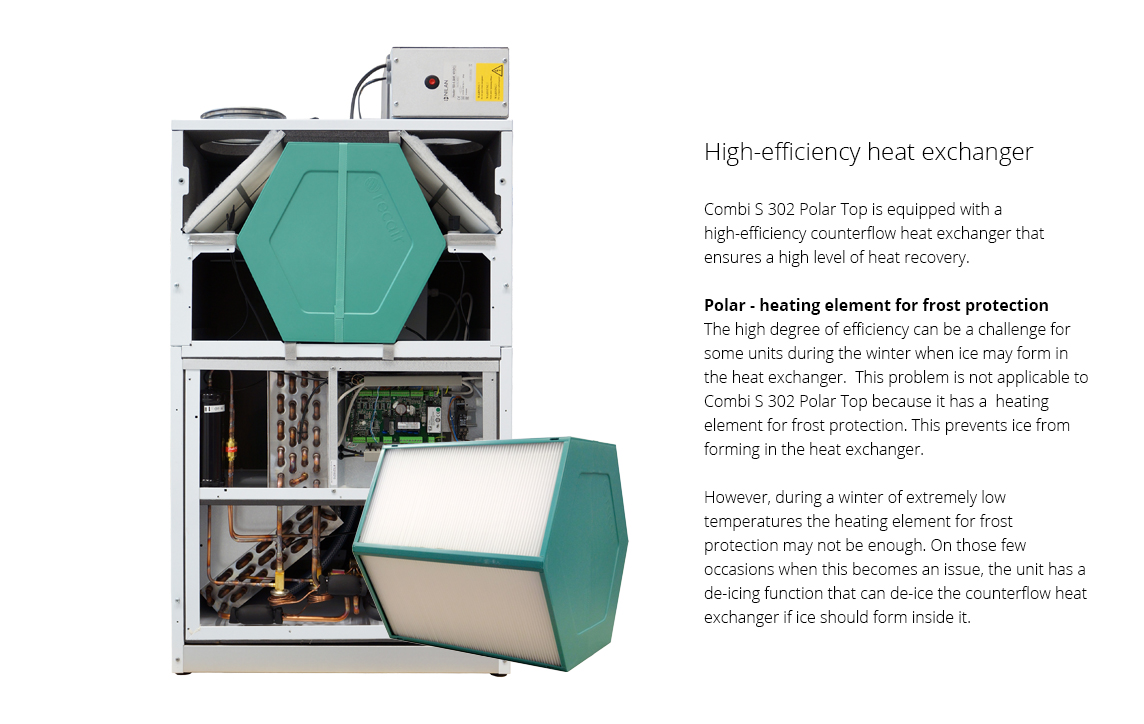

The heat recovery process occurs primarily via a counterflow heat exchanger that achieves 81 - 85% heat recovery. The unit is also equipped with an air to air heat pump that can heat the supply air when the dwelling requires heating. Combi S 302 Polar Top is used e.g. in low energy houses as primary heat source, but it can also control supplementary heat sources such as electric radiators.

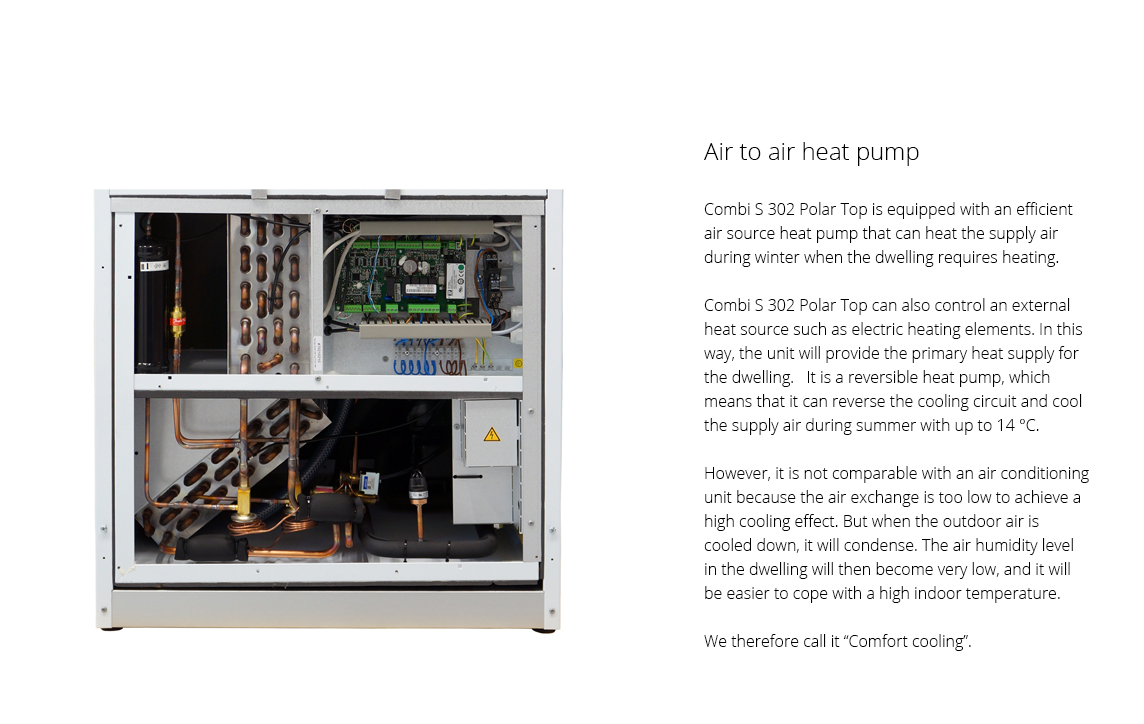

The heat pump has a reversible cooling circuit that can cool the supply air with up to 14 ºC when necessary during the summer. It is not comparable with an air conditioning unit as due to its low level of air exchange of 0.5 times/hour, its cooling effect is not as substantial. But when cooled down, the outdoor air will condense, which means the air humidity level will become lower in the dwelling. It is easier to cope with the heat when the air humidity level is low indoors. That is why we call it “Comfort cooling”.


Airflow (see planning data for SEL/SFP values)

Min : 75 m3/h
Max : 340 m3/h

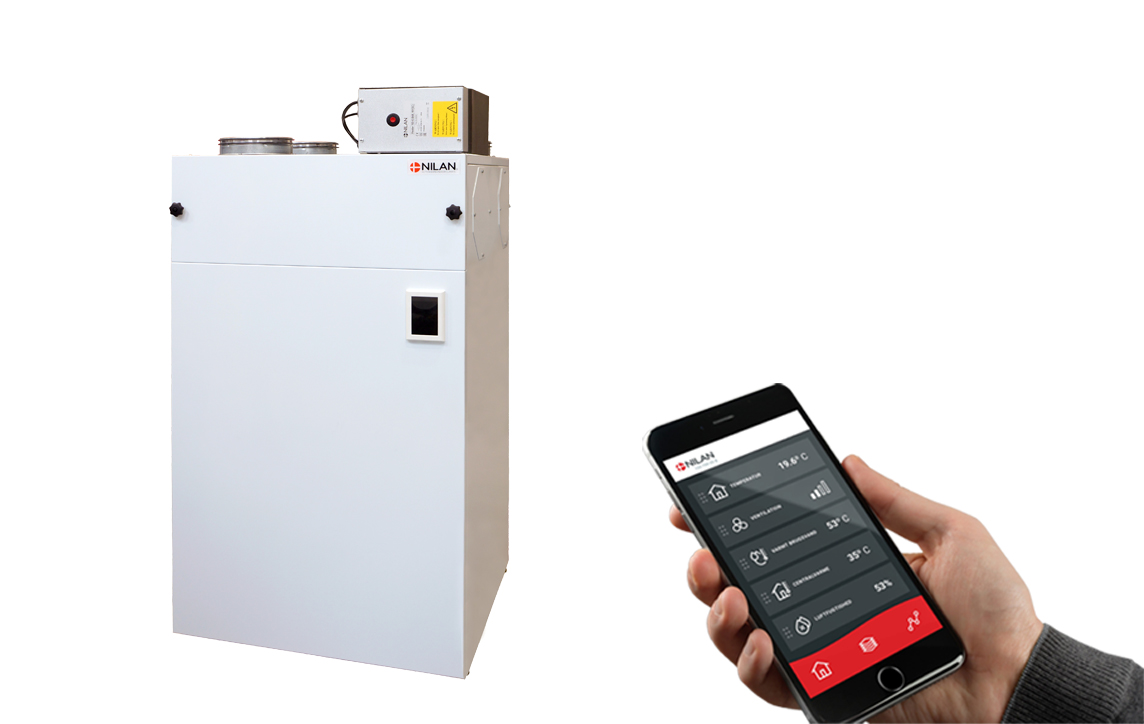

Nilan App - Control the ventilation and heat pump directly from the mobile phone

Nilan has developed an App with great features where the user can control the ventilation and heat pump directly from the mobile phone. The App is intuitive, easy and safe to use, and allows the user to e.g. set the room temperature. More ventilation units can be connected using the same App to control the indoor climate in e.g. both the dwelling and the holiday home. More users can be connected the same App.

The Combi S 302 Polar Top comes as standard with the Nilan gateway.

Get more information on the Nilan App


Dimensions (W x D x H) 600 x 600 x 1196 mm
Weight 87 kg
Plate type casing Aluzinc steel plate, white powder coating RAL9016
Heat exchanger type Polyethylenterephthalat counterflow heat exchanger

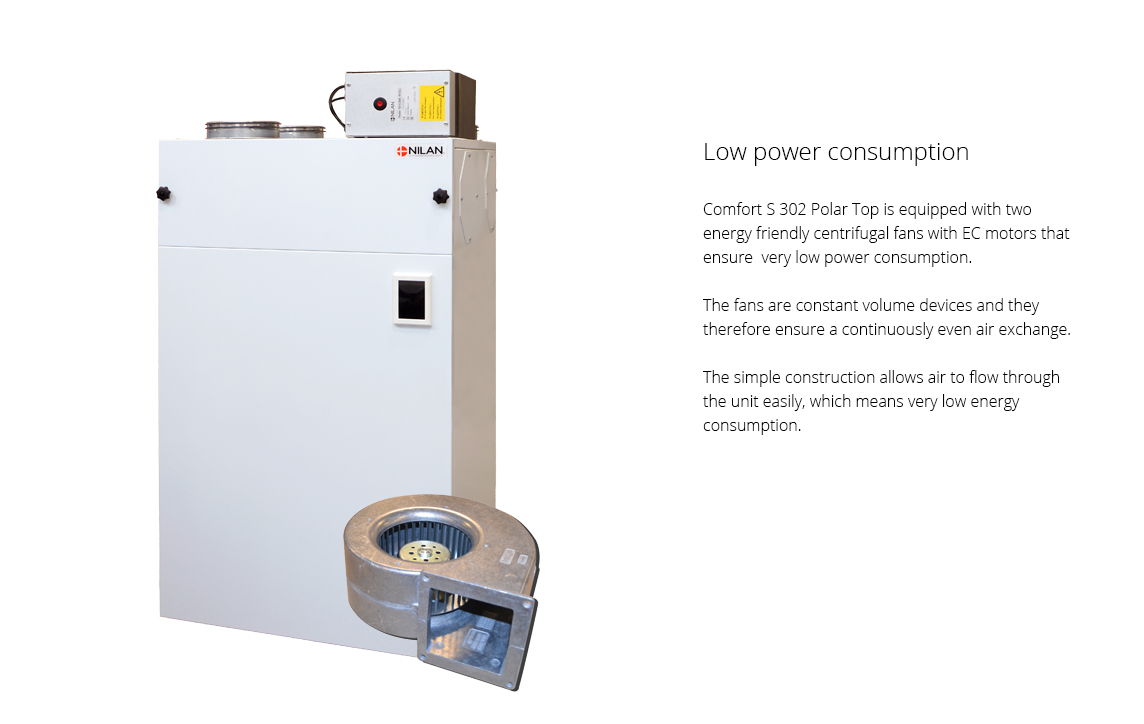

Fan type EC, constant volume
Filter class Greencycle ISO 16890 Coarse 75% (G4)
Compressor type Piston compressor
Refrigerant R134a
Refrigerant filling 650 gr.
Duct connections Ø160 mm
Condensate drain PVC Ø20 x 1,5 mm
Supply voltage 230V 50/60 Hz
Max. input/power 1,2 kW/5,2 A
Power consumption heating element 600 W
Standby power 3W
Tightness class IP31
Ambient temperature -10 / +40 °C
External leakage < 0,78 % (*1)
Internal leakage < 1,47 % (*2)
Heat loss classification T2

*1 - At ± 250 Pa and 300 m3/h according to EN 13141-7.
*2 - At ± 100 Pa and 300 m3/h according to EN 13141-7.

Capacity

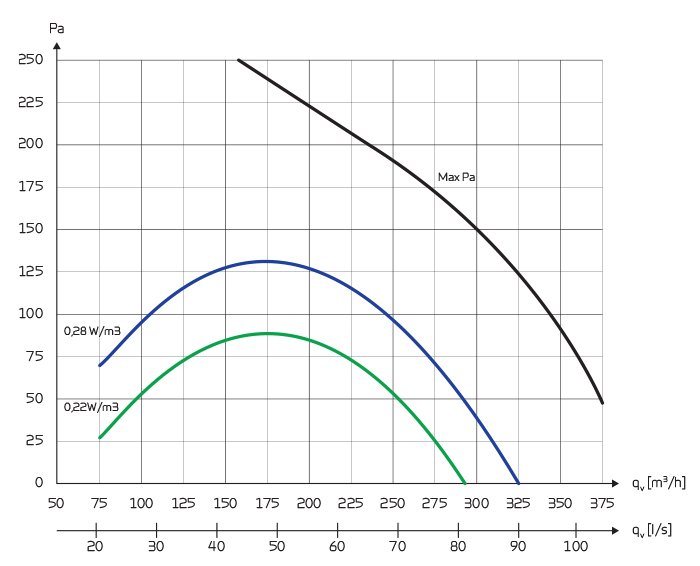

Capacity of standard unit as a function of qv and Pt, ext.

SEL values according to EN 13141-7 are for standard units with ISO 16890 Coarse 75% (G4) filters and without heating element.

SEL values comprise the unit’s total power comsumption incl. control.

Conversion factor: J/m3 : 3600 = W/m3/h.

Attention! The SEL values are measured and stated as a total value for both fans.

Temperature efficiency

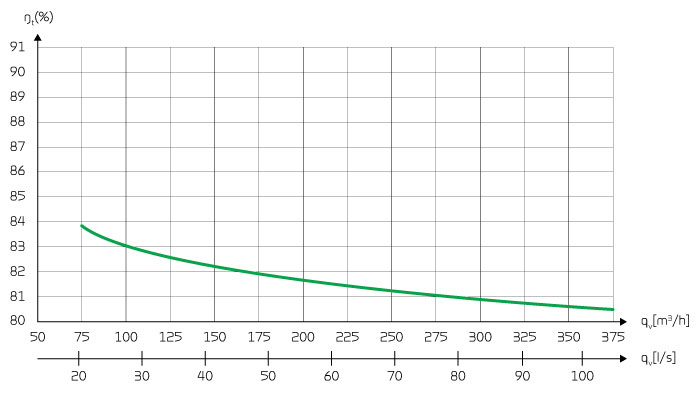

Temperature efficiency for units with counterflow heat exchanger according to EN13141-7.

NB!  Temperature efficiency is only for the counter flow heat exchanger (without heat pump operation)

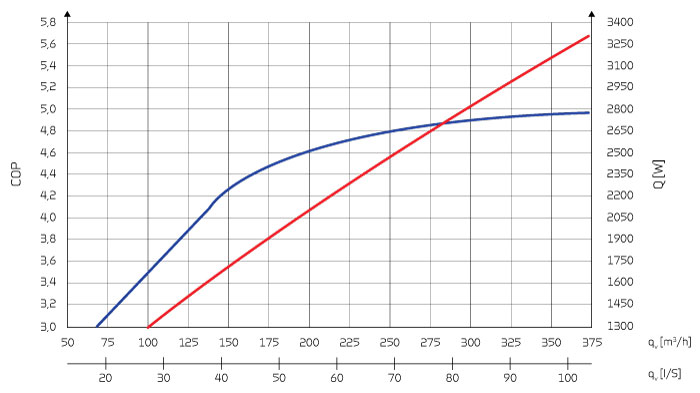

Heat output supply air (red curve)

Heat output Qc [W] as a function of qv [m3/h] and outdoor air temperature t21 [°C]. In accordance with EN 14511, t11=21°C (extract air).

Heat output is the contribution to room heating added to the fresh air via Combi S 302 Polar Top to the supply air. The ventilation loss is the heat output that is lost without heat recovery at the given volume flow air.


COP air-air (blue curve)

Heat output factor COP [-] supply air as a function of outdoor temperature t21 [°C] and volume flow qv [m3/h] in accordance with EN14511 at a room temperature t11 = 21°C

COP according EN14511 is calculated for the heat pump and counter flow heat exchanger combined.

Sound data

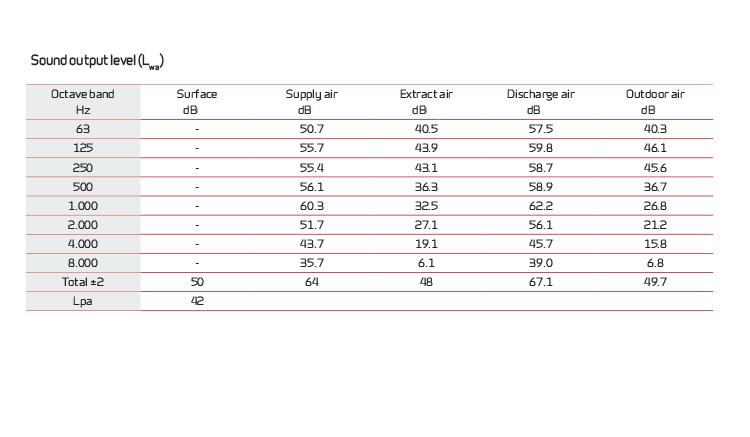

Sounddata is for qv = 210 m3/h and Pt, ext = 100 Pa in accordance with EN 9614-2 for surface and EN 5136 for ducts.

Sound output level LWA drops with falling air volumes and falling back-pressure.

At a given distance, the sound pressure level LpA will depend on the acoustic conditions at the installation site.

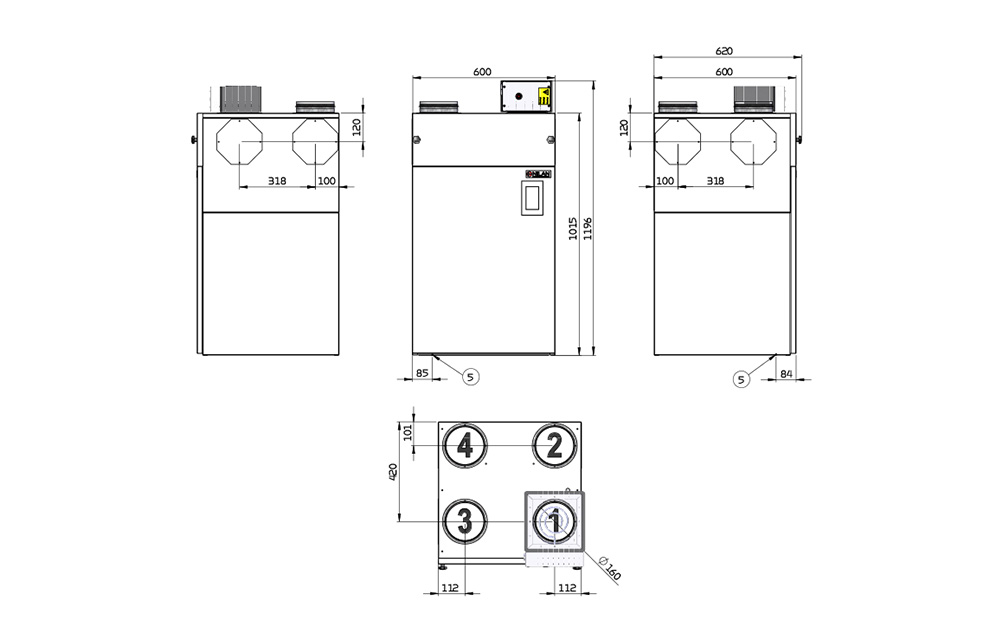

Dimensional drawing Combi S 302 Polar Top:

All dimensions are in mm.

Connections
1: Fresh air
2: Supply air
3: Extract air
4: Discharge air
5: Condensate drain

The CTS602 control system is an advanced control system with many settings options. The control system is supplied with factory default settings that can be adapted to the operational requirements in order to achieve best possible operation and utilisation of the unit.

The HMI Touch panel provides an overview of the current operation of the unit, and the structure of its menu makes it easy to navigate for both user and installer. There is an option for selecting between 2 front page images for the main screen.

External communication
The CTS602i control unit communicates by default with Modbus RTU RS485 communication. A CTS system using this form of communication can easily be connected to the unit.

Functions overview   +Standard
-Accessories
Alarms Description of errors indicated with alarms. Alarm log displaying the latest 16 alarms. +
Joint alarm The CTS602 control system has an output signal that is activated in the case of an alarm. It can be connected to, for example, external automation.

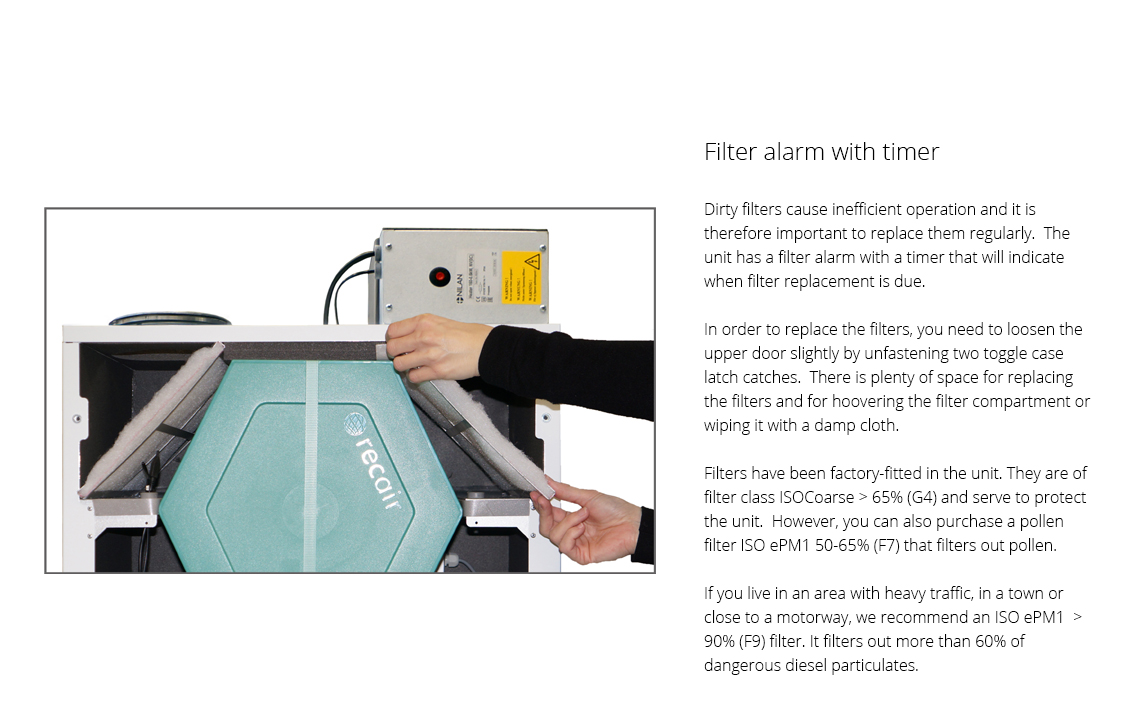

Filter monitor Filter alarm with timer that can be set to 30/90/180/360 days. +
Data display An overview of the current operation with regards to temperatures, fan speed level etc. +
Week program The CTS602 control system has 3 week programs that can be set individually (the default setting is “off”). +
Humidity control system Enables a higher or lower degree of ventilation at a high/low level of humidity. +
Air quality Enables you to adjust the degree of ventilation depending on the CO2 level in the air. -
Winter low You can prevent a low level of humidity in the dwelling by activating low ventilation at low outdoor temperatures. +
Temperature regulation Enables you to control the operation of the unit in accordance with the room temperature. +
Summer/winter mode You can set the unit to operate in summer or winter mode.
Language You can choose from more than 10 languages in the control panel. +
User levels The menu in the control panel is divided into 3 user levels: User/Installer/Factory. +
User selection 1 Enables you to override the operating mode via an external potential free signal. +
User selection 2 Enables you to override the operating mode as well as user selection 1 via an external potential free signal. -
Air exchange Stepless setting of four fan speed levels. The supply air and the extract air can be set individually. +
Polar version An integral frost-protection heating element prevents the heat exchanger from freezing. +
De-icing Based on temperature, this automatic function de-ices the counterflow heat exchanger if ice has formed within it. +
Room low Safety function that will cause the ventilation unit to stop if the heating system for the dwelling fails. This will prevent the unit from cooling the dwelling even further. +
External heating The ventilation unit can control an external heat supply in accordance with the current room temperature. +
External fire automation system You can connect the ventilation unit to an external fire automation system or to a fire thermostat. This will signal to the unit whether to stop or continue operation. +
Pressure sustaining regulator You can install a pressure sustaining regulator on the side of both the extract air and the supply air. -
Delayed start-up You can activate a delayed start-up of the fans if you install, for instance, a shut-off damper. +
Restore settings You can save the current settings and subsequently restore them if, for instance, the user has altered the settings on the unit. You can also reinstall the default settings. +
Manual operation Different functions can be tested manually. +
Energy saving function You can activate a power saving function of the operation. +
Modbus  You can set the Modbus address of the unit. The default setting is 30. +
Data logging It is possible to log the operational data of the unit every 1 - 120 min. Alarms are logged when they occur. +
Control panel You can choose from 2 different images for the main screen. +

You can find further information about all the functions in the Software and Installation instructions for the unit.
